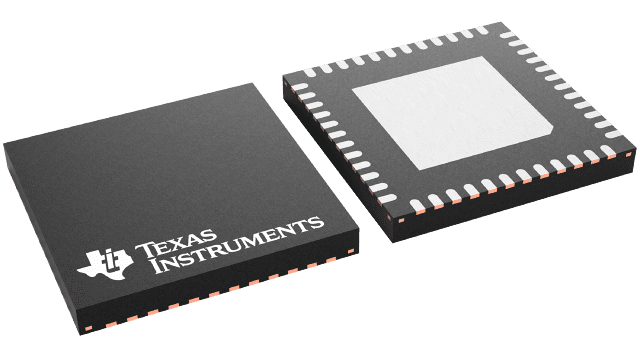

DS99R103TSQX/NOPB Texas Instruments - Yeehing Electronics
3-MHz to 40-MHz DC-balanced 24-bit LVDS serializer for -40C to 85C
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 7.384 |
| 100 — 249 | 6.02 |
| 250 — 999 | 4.731 |
| 1,000 + | 2.81 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Serializers & Deserializers - Serdes |
| RoHS | Y |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Package / Case | WQFN-48 |
| Packaging | Reel |
| Series | DS99R103 |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Product Type | Serializers & Deserializers - Serdes |
| Factory Pack Quantity | 2500 |
| Subcategory | Interface ICs |
| Unit Weight | 0.001411 oz |
For more information, please refer to datasheet
Documents
| DS99R103TSQX/NOPB Datasheet |
More Information
The DS99R103/DS99R104 Chipset translates a 24-bit parallel bus into a fully transparent data/control LVDS serial stream with embedded clock information. This single serial stream simplifies transferring a 24-bit bus over PCB traces and cable by eliminating the skew problems between parallel data and clock paths. It saves system cost by narrowing data paths that in turn reduce PCB layers, cable width, and connector size and pins.
