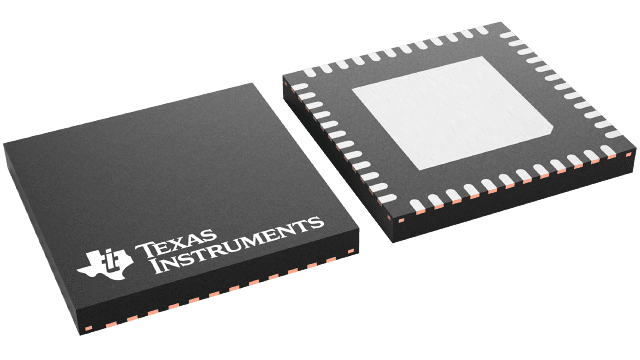

DS99R104TSQ/NOPB Texas Instruments - Yeehing Electronics

3-MHz to 40-MHz DC-balanced 24-bit LVDS deserializer for -40C to 85C

Pricing (USD)

Quantity	Unit Price
1 — 99	8.861
100 — 249	7.224
250 — 999	5.678
1,000 +	3.37

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Serializers & Deserializers - Serdes
RoHS	Y
Type	Deserializer
Data Rate	960 Mb/s
Input Type	FPD-Link II, LVDS
Output Type	LVCMOS
Number of Inputs	1 Input
Number of Outputs	24 Output
Operating Supply Voltage	3.3 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	WQFN-48
Packaging	Reel
Input Current	300 uA
Series	DS99R104
Brand	Texas Instruments
Moisture Sensitive	Yes
Product Type	Serializers & Deserializers - Serdes
Factory Pack Quantity	250
Subcategory	Interface ICs
Supply Voltage - Max	3.6 V
Supply Voltage - Min	3 V
Unit Weight	0.001411 oz

For more information, please refer to datasheet

Documents

DS99R104TSQ/NOPB Datasheet

More Information

The DS99R103/DS99R104 Chipset translates a 24-bit parallel bus into a fully transparent data/control LVDS serial stream with embedded clock information. This single serial stream simplifies transferring a 24-bit bus over PCB traces and cable by eliminating the skew problems between parallel data and clock paths. It saves system cost by narrowing data paths that in turn reduce PCB layers, cable width, and connector size and pins.
