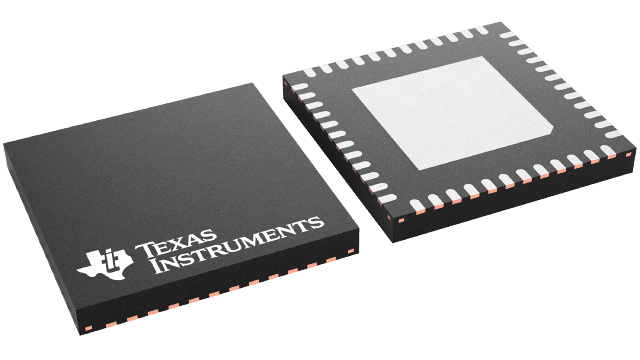

DS99R105SQ/NOPB Texas Instruments - Yeehing Electronics

3-MHz to 40-MHz DC-balanced 24-bit LVDS serializer

Pricing (USD)

Quantity	Unit Price
1 — 99	7.577
100 — 249	6.177
250 — 999	4.855
1,000 +	2.88

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Serializers & Deserializers - Serdes
RoHS	Y
Type	Serializer
Data Rate	960 Mb/s
Input Type	LVCMOS
Output Type	FPD-Link, LVDS
Number of Inputs	24 Input
Number of Outputs	1 Output
Operating Supply Voltage	3.3 V
Minimum Operating Temperature	0 C
Maximum Operating Temperature	+ 70 C
Mounting Style	SMD/SMT
Package / Case	WQFN-48
Packaging	Reel
Input Current	5 uA
Series	DS99R105
Brand	Texas Instruments
Moisture Sensitive	Yes
Product Type	Serializers & Deserializers - Serdes
Factory Pack Quantity	250
Subcategory	Interface ICs
Supply Voltage - Max	3.6 V
Supply Voltage - Min	3 V
Unit Weight	0.001411 oz

For more information, please refer to datasheet

Documents

DS99R105SQ/NOPB Datasheet

More Information

The DS99R105/DS99R106 Chipset translates a 24-bit parallel bus into a fully transparent data/control LVDS serial stream with embedded clock information. This single serial stream simplifies transferring a 24-bit bus over PCB traces and cable by eliminating the skew problems between parallel data and clock paths. It saves system cost by narrowing data paths that in turn reduce PCB layers, cable width, and connector size and pins.
