Texas Instruments
DS99R106SQ/NOPB
DS99R106SQ/NOPB
Regular price
$2.88 USD
Regular price
Sale price
$2.88 USD
Unit price
per
Couldn't load pickup availability

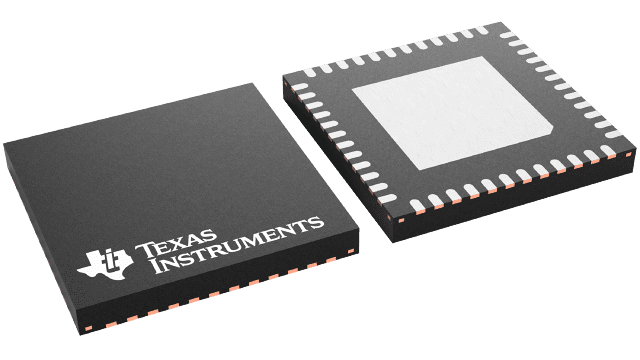

DS99R106SQ/NOPB Texas Instruments - Yeehing Electronics
3-MHz to 40-MHz DC-balanced 24-bit LVDS deserializer
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 7.577 |
| 100 — 249 | 6.177 |
| 250 — 999 | 4.855 |
| 1,000 + | 2.88 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Serializers & Deserializers - Serdes |
| RoHS | Y |
| Type | Deserializer |
| Data Rate | 960 Mb/s |
| Input Type | FPD-Link II, LVDS |
| Output Type | LVCMOS |
| Number of Inputs | 1 Input |
| Number of Outputs | 24 Output |
| Operating Supply Voltage | 3.3 V |
| Minimum Operating Temperature | 0 C |
| Maximum Operating Temperature | + 70 C |
| Mounting Style | SMD/SMT |
| Package / Case | WQFN-48 |
| Packaging | Reel |
| Input Current | 300 uA |
| Series | DS99R106 |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Product Type | Serializers & Deserializers - Serdes |
| Factory Pack Quantity | 250 |
| Subcategory | Interface ICs |
| Supply Voltage - Max | 3.6 V |
| Supply Voltage - Min | 3 V |
| Unit Weight | 0.001411 oz |
For more information, please refer to datasheet
Documents
| DS99R106SQ/NOPB Datasheet |
More Information
The DS99R105/DS99R106 Chipset translates a 24-bit parallel bus into a fully transparent data/control LVDS serial stream with embedded clock information. This single serial stream simplifies transferring a 24-bit bus over PCB traces and cable by eliminating the skew problems between parallel data and clock paths. It saves system cost by narrowing data paths that in turn reduce PCB layers, cable width, and connector size and pins.
