Texas Instruments
DS99R421QSQX/NOPB
DS99R421QSQX/NOPB
Regular price
$3.91 USD
Regular price
Sale price
$3.91 USD
Unit price
per
Couldn't load pickup availability

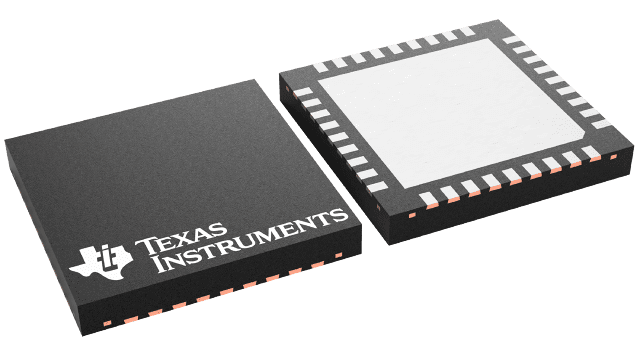

DS99R421QSQX/NOPB Texas Instruments - Yeehing Electronics
5-43 MHz FPD-Link LVDS (3 Data + 1 Clk) to FPD-Link II LVDS (Embedded Clk DC-Balanced) Conv
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 8.117 |
| 100 — 249 | 7.091 |
| 250 — 999 | 5.467 |
| 1,000 + | 3.91 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Serializers & Deserializers - Serdes |
| RoHS | Y |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 105 C |
| Package / Case | WQFN-36 |
| Packaging | Reel |
| Series | DS99R421-Q1 |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Product Type | Serializers & Deserializers - Serdes |
| Factory Pack Quantity | 2500 |
| Subcategory | Interface ICs |
| Unit Weight | 0.001411 oz |
For more information, please refer to datasheet
Documents
| DS99R421QSQX/NOPB Datasheet |
More Information
The DS99R421 converts a FPD-Link input with 4 non-DC Balanced LVDS (3 LVDS Data + LVDS Clock) plus 3 over-sampled low speed control bits into a single LVDS DC-balanced serial stream with embedded clock information. This single serial stream simplifies transferring the 24-bit bus over a single differential pair of PCB traces and cable by eliminating the skew problems between the 3 parallel LVDS data inputs and LVDS clock paths. It saves system cost by narrowing 4 LVDS pairs to 1 LVDS pair that in turn reduce PCB layers, cable width, connector size, and pins.
