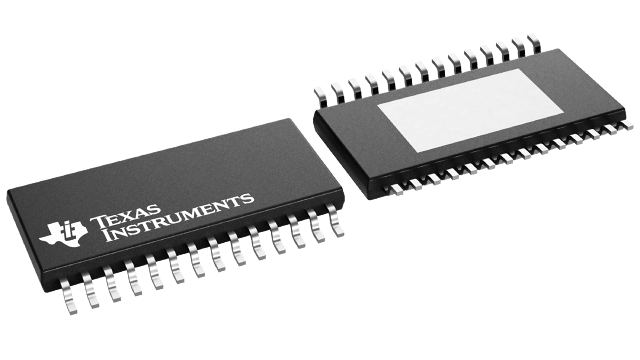

EMB1499QMHX/NOPB Texas Instruments - Yeehing Electronics
Bidirectional current DC/DC controller
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 10.666 |
100 — 249 | 9.346 |
250 — 999 | 6.552 |
1,000 + | 3.01 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Switching Controllers |
RoHS | Y |
Topology | Forward |
Number of Outputs | 1 Output |
Switching Frequency | 220 kHz to 290 kHz |
Duty Cycle - Max | 91 % |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 125 C |
Mounting Style | SMD/SMT |
Package / Case | HTSSOP-28 |
Packaging | Reel |
Operating Temperature Range | - 40 C to + 125 C |
Series | EMB1499Q |
Brand | Texas Instruments |
Operating Supply Current | 1 mA |
Product Type | Switching Controllers |
Factory Pack Quantity | 2500 |
Subcategory | PMIC - Power Management ICs |
Unit Weight | 0.004233 oz |
For more information, please refer to datasheet
Documents
EMB1499QMHX/NOPB Datasheet |
More Information
The EMB1499Q bidirectional current dc/dc controller IC works in conjunction with the EMB1428 switch matrix gate driver IC to support TI’s switch matrix based active cell balancing scheme for a battery management system. The EMB1499Q provides three PWM MOSFET gate signals to a bidirectional forward converter so that its output current, either positive or negative, is regulated around a user-defined magnitude. This inductor current is channeled by the EMB1428 through the switch matrix to the cell that needs to be charged or discharged. In a typical scheme, the EMB1499Q-based forward converter exchanges energy between a single cell and the battery stack to which it belongs, with a maximum stack voltage of up to 60 V. The switching frequency is fixed at 250 kHz. The EMB1499Q senses cell voltage, inductor current and stack current and provides protection from abnormal conditions during balancing.
