Texas Instruments
ESD122DMYR
ESD122DMYR
Regular price
$0.08 USD
Regular price
Sale price
$0.08 USD
Unit price
per
Couldn't load pickup availability

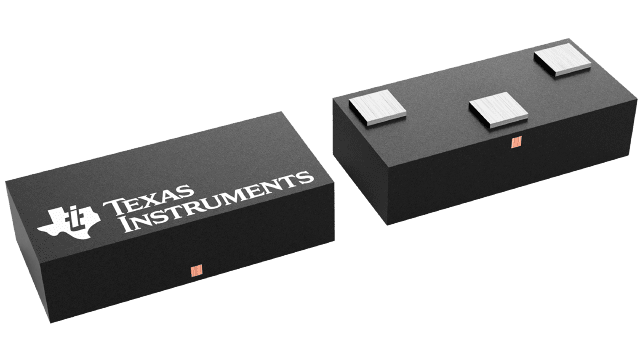

ESD122DMYR Texas Instruments - Yeehing Electronics
Dual 0.2-pF, ±3.6-V, ±18-kV ESD protection diode for USB Type-C and HDMI 2.0
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.344 |
| 100 — 249 | 0.234 |
| 250 — 999 | 0.181 |
| 1,000 + | 0.08 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | TVS Diodes / ESD Suppressors |
| RoHS | Y |
| Series | ESD122 |
| Product Type | ESD Suppressors |
| Vesd - Voltage ESD Contact | 18 kV |
| Vesd - Voltage ESD Air Gap | 17 kV |
| Polarity | Bidirectional |
| Number of Channels | 2 Channel |
| Termination Style | SMD/SMT |
| Breakdown Voltage | 5.1 V |
| Working Voltage | 3.6 V |
| Clamping Voltage | 8.4 V |
| Ipp - Peak Pulse Current | 5 A |
| Cd - Diode Capacitance | 0.14 pF |
| Package / Case | X2SON-3 |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Packaging | Reel |
| Brand | Texas Instruments |
| Factory Pack Quantity | 10000 |
| Subcategory | TVS Diodes / ESD Suppression Diodes |
For more information, please refer to datasheet
Documents
| ESD122DMYR Datasheet |
More Information
The ESD122 is a bidirectional TVS ESD protection diode array for USB Type-C and HDMI 2.0 circuit protection. The ESD122 is rated to dissipate contact ESD strikes at the maximum level specified in the IEC 61000-4-2 international standard (17-kV Contact, 17-kV Air-gap).
