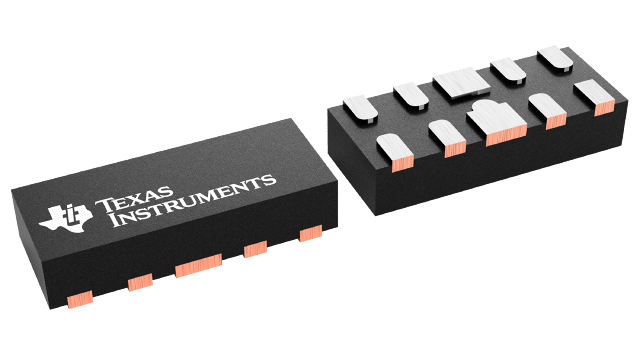

ESD204DQAR Texas Instruments - Yeehing Electronics
Quad 0.55-pF, ±3.6-V, ±30-kV ESD protection diode with 5.5A surge rating for USB & HDMI
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.531 |
| 100 — 249 | 0.361 |
| 250 — 999 | 0.278 |
| 1,000 + | 0.13 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | TVS Diodes / ESD Suppressors |
| RoHS | Y |
| Series | ESD204 |
| Product Type | ESD Suppressors |
| Vesd - Voltage ESD Contact | 30 kV |
| Vesd - Voltage ESD Air Gap | 30 kV |
| Polarity | Bidirectional |
| Number of Channels | 4 Channel |
| Termination Style | SMD/SMT |
| Breakdown Voltage | 5.5 V |
| Working Voltage | 3.6 V |
| Clamping Voltage | 8.5 V |
| Cd - Diode Capacitance | 0.65 pF |
| Package / Case | USON-10 |
| Pppm - Peak Pulse Power Dissipation | 50 W |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Packaging | Reel |
| Brand | Texas Instruments |
| Factory Pack Quantity | 3000 |
| Subcategory | TVS Diodes / ESD Suppression Diodes |
| Unit Weight | 0.000152 oz |
For more information, please refer to datasheet
Documents
| ESD204DQAR Datasheet |
More Information
The ESD204 is a bidirectional TVS ESD protection diode array for HDMI and USB surge protection up to 5.5 A (8/20 µs). The ESD204 is rated to dissipate ESD strikes at the maximum level specified in the IEC 61000-4-2 international standard (Level 4).
