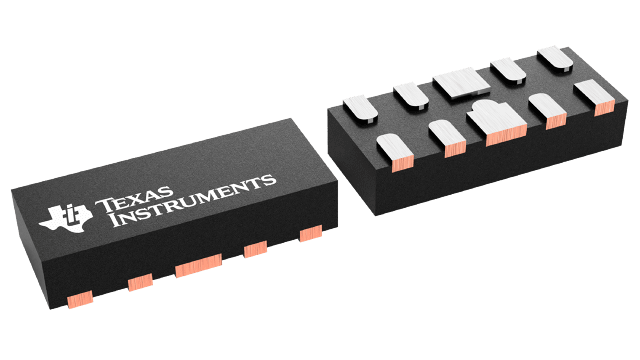

ESD224DQAR Texas Instruments - Yeehing Electronics
Quad 0.5-pF, ±3.6-V, ±12-kV ESD protection diode with 8-V, 16-A TLP Clamping for USB & HDMI
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 0.255 |
100 — 249 | 0.174 |
250 — 999 | 0.134 |
1,000 + | 0.06 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | TVS Diodes / ESD Suppressors |
RoHS | Y |
Series | ESD224 |
Product Type | ESD Suppressors |
Vesd - Voltage ESD Contact | 12 kV |
Vesd - Voltage ESD Air Gap | 15 kV |
Polarity | Bidirectional |
Number of Channels | 4 Channel |
Termination Style | SMD/SMT |
Breakdown Voltage | 5 V |
Working Voltage | 3.6 V |
Clamping Voltage | 8 V |
Ipp - Peak Pulse Current | 2 A |
Cd - Diode Capacitance | 0.6 pF |
Package / Case | USON-10 |
Pppm - Peak Pulse Power Dissipation | 17 W |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 125 C |
Packaging | Reel |
Brand | Texas Instruments |
Factory Pack Quantity | 3000 |
Subcategory | TVS Diodes / ESD Suppression Diodes |
Unit Weight | 0.000148 oz |
For more information, please refer to datasheet
Documents
More Information
The ESD224 is a bidirectional TVS ESD protection diode array for high speed applications such as USB 3.0 and HDMI 2.0. The ESD224 is rated to dissipate ESD strikes at the maximum level specified in the IEC 61000-4-2 international standard (Level 4). The ESD224 employs on-chip differentially matched series elements to enhance down-stream ESD clamping performance while maintaining the signal compliance for high speed interfaces. The ultra-low clamping performance and high differential bandwidth provided by the ESD224 on-chip ESD protection network enables the device to be HDMI 2.0 compliant while providing robust protection to downstream HDMI devices.
