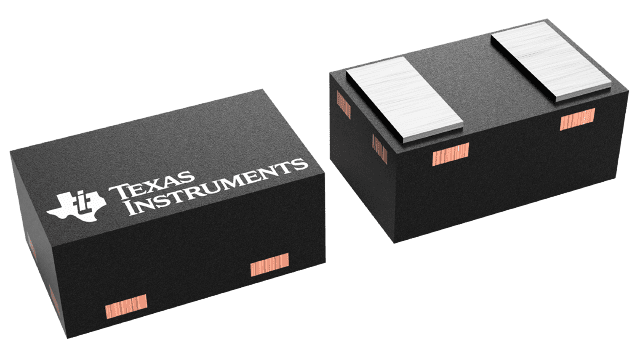

ESD351DPYR


YeeHing #: Y007-ESD351DPYR
Inventory: 4800

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

ESD351DPYR Texas Instruments - Yeehing Electronics

1.8-pF, 3.3V, ±30-kV ESD protection diode with 6.5-V, 16-A TLP clamping in 0402 package for USB 2.0

Pricing (USD)

Quantity Unit Price
1 — 99 0.161
100 — 249 0.109
250 — 999 0.084
1,000 + 0.03

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category TVS Diodes / ESD Suppressors
RoHS Y
Series ESD351
Product Type ESD Suppressors
Vesd - Voltage ESD Contact 30 kV
Vesd - Voltage ESD Air Gap 30 kV
Polarity Unidirectional
Number of Channels 1 Channel
Termination Style SMD/SMT
Breakdown Voltage 4.5 V
Working Voltage 3.6 V
Clamping Voltage 6.5 V
Ipp - Peak Pulse Current 16 A
Cd - Diode Capacitance 1.8 pF
Package / Case X1SON-2
Pppm - Peak Pulse Power Dissipation 36 W
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 125 C
Packaging Reel
Brand Texas Instruments
Factory Pack Quantity 10000
Subcategory TVS Diodes / ESD Suppression Diodes
Vf - Forward Voltage 0.8 V
Unit Weight 0.000028 oz

For more information, please refer to datasheet

Documents

ESD351DPYR Datasheet

More Information

The ESD351 is a uni-directional TVS ESD protection diode featuring low dynamic resistance RDYN and low clamping voltage. The ESD351 is rated to dissipate ESD strikes up to 30 kV (Contact and Air) level per the IEC 61000-4-2 standard. The ultra-low dynamic resistance (0.1 Ω) and extremely low clamping voltage (6.5 V at 16-A TLP) ensure system level protection against transient events. This device has a capacitance of 1.8 pF (typical) making it ideal for protecting interfaces such as USB 2.0.
