Texas Instruments

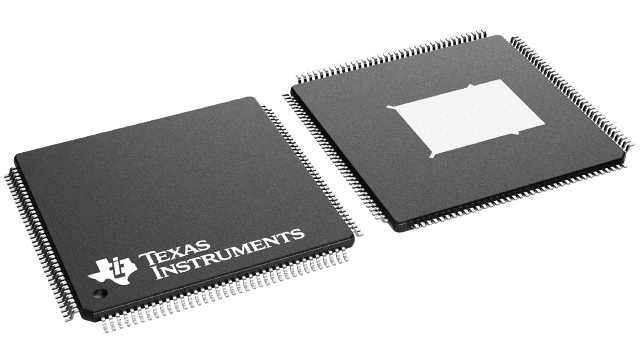

F28M35H52C1RFPS
F28M35H52C1RFPS
Regular price
$13.29 USD
Regular price
Sale price
$13.29 USD
Unit price
per
Couldn't load pickup availability
F28M35H52C1RFPS Texas Instruments - Yeehing Electronics
C2000™ dual core 32-bit MCU with 250 MIPS, 1024-kb Flash
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 29.047 |
| 100 — 249 | 25.82 |
| 250 — 999 | 21.225 |
| 1,000 + | 13.29 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | ARM Microcontrollers - MCU |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | HTQFP-144 |
| Series | F28M35H52C |
| Core | ARM Cortex M3 |
| Data Bus Width | 32 bit |
| Maximum Clock Frequency | 150 MHz |
| Program Memory Size | 1 MB |
| Data RAM Size | 136 kB |
| ADC Resolution | 12 bit |
| Number of I/Os | 64 I/O |
| Operating Supply Voltage | 1.2 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Packaging | Tray |
| Product | MCU |
| Program Memory Type | Flash |
| Brand | Texas Instruments |
| Data RAM Type | RAM |
| Interface Type | CAN, Ethernet, I2C, McBSP, SPI, UART, USB |
| Analog Supply Voltage | 1.8 V |
| I/O Voltage | 3.3 V |
| Moisture Sensitive | Yes |
| Number of ADC Channels | 20 Channel |
| Number of Timers/Counters | 4 Timer |
| Processor Series | TMS320 |
| Product Type | ARM Microcontrollers - MCU |
| Factory Pack Quantity | 60 |
| Subcategory | Microcontrollers - MCU |
| Supply Voltage - Max | 1.32 V |
| Supply Voltage - Min | 1.14 V |
| Unit Weight | 0.036290 oz |
For more information, please refer to datasheet
Documents
| F28M35H52C1RFPS Datasheet |
More Information
The Concerto family is a multicore system-on-chip microcontroller unit (MCU) with independent communication and real-time control subsystems. The F28M35x family of devices is the first series in the Concerto family.
