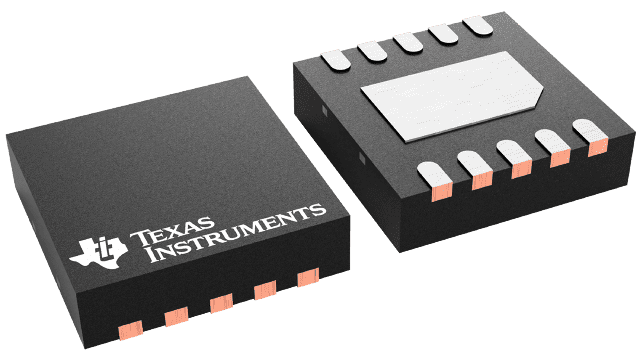

FDC1004DSCT Texas Instruments - Yeehing Electronics

4-Ch, 16-bit, capacitance to digital converter with active shield driver

Pricing (USD)

Quantity	Unit Price
1 — 99	4.858
100 — 249	3.96
250 — 999	3.113
1,000 +	1.85

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Capacitive Touch Sensors
RoHS	Y
Sensor Type	Capacitance-to-Digital Converter
Number of Channels	4 Channel
Interface Type	I2C
Package / Case	WSON-10
Dimensions	3.1 mm L x 3.1 mm W x 0.8 mm H
Temperature Range	- 40 C to + 85 C
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Packaging	Reel
Height	0.8 mm
Length	3.1 mm
Series	FDC1004
Termination Style	SMD/SMT
Width	3.1 mm
Brand	Texas Instruments
Mounting Style	SMD/SMT
Operating Supply Voltage	3.3 V
Product Type	Touch Sensors
Factory Pack Quantity	250
Subcategory	Sensors
Unit Weight	0.000903 oz

For more information, please refer to datasheet

Documents

FDC1004DSCT Datasheet

More Information

Capacitive sensing with grounded capacitor sensors is a very low-power, low-cost, high-resolution contact-less sensing technique that can be applied to a variety of applications ranging from proximity sensing and gesture recognition to material analysis and remote liquid level sensing. The sensor in a capacitive sensing system is any metal or conductor, allowing for low cost and highly flexible system design.
