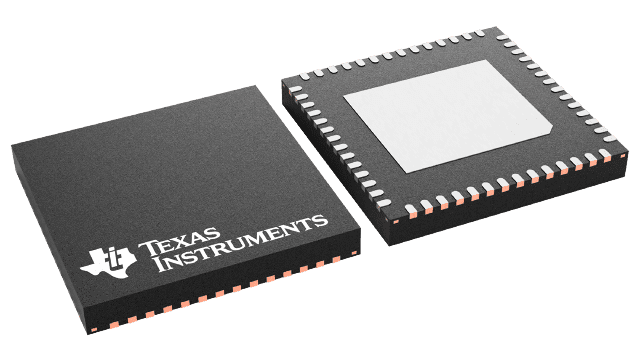

HD3SS215RTQR Texas Instruments - Yeehing Electronics
6-Gbps HDMI 2.0/5.4-Gbps DisplayPort 1.2a 1-to-2 /2-to-1 differential mux supports DDC/AUX switching
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 2.973 |
100 — 249 | 2.605 |
250 — 999 | 1.827 |
1,000 + | 1.03 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Video Switch ICs |
RoHS | Y |
Product | Video Switches |
Configuration | 1 x 1 |
On Resistance - Max | 14 Ohms |
Bandwidth | 7 GHz |
On Time - Max | 1 us |
Off Time - Max | 20 us |
Operating Supply Voltage | 3.3 V |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Mounting Style | SMD/SMT |
Package / Case | QFN-56 |
Packaging | Reel |
Series | HD3SS215 |
Supply Type | Single Supply |
Brand | Texas Instruments |
Moisture Sensitive | Yes |
Number of Switches | 2 Switch |
Product Type | Video Switch ICs |
Propagation Delay Time | 200 ps |
Factory Pack Quantity | 2000 |
Subcategory | Switch ICs |
Supply Voltage - Max | 3.6 V |
Supply Voltage - Min | 3 V |
Unit Weight | 0.005633 oz |
For more information, please refer to datasheet
Documents
HD3SS215RTQR Datasheet |
More Information
HD3SS215 is a high-speed wide common mode passive switch capable of supporting DisplayPort HBR2 and high definition multimedia interface (HDMI) applications requiring 4k2k 60Hz refresh rates. The HD3SS215 can be configured to support two sources to one sink or one source to two sinks. To support these video standards the HD3SS215 also switches the display data channel (DDC) and hot plug detect (HPD) signals for HDMI or digital video interface (DVI) applications. It also switches the auxiliary (AUX) and hot plug detect (HPD) signals for DisplayPort applications. The flexibility the HD3SS215 provides by supporting both wide common mode and AC or DC coupled links makes it ideal for many applications.
