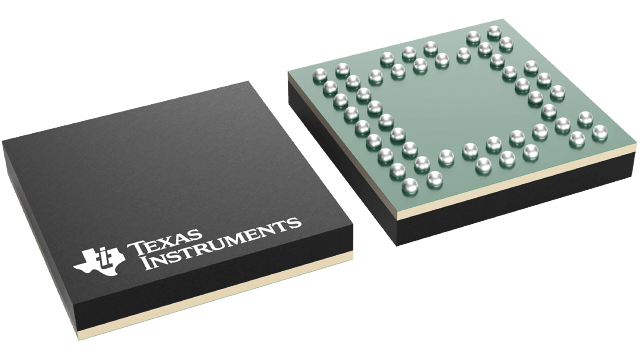

HD3SS215ZXHR


YeeHing #: Y007-HD3SS215ZXHR
Inventory: 6800

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

HD3SS215ZXHR Texas Instruments - Yeehing Electronics

6-Gbps HDMI 2.0/5.4-Gbps DisplayPort 1.2a 1-to-2 /2-to-1 differential mux supports DDC/AUX switching

Pricing (USD)

Quantity Unit Price
1 — 99 2.973
100 — 249 2.605
250 — 999 1.827
1,000 + 1.03

The above prices are for reference only.

Specifications

None

For more information, please refer to datasheet

Documents

HD3SS215ZXHR Datasheet

More Information

HD3SS215 is a high-speed wide common mode passive switch capable of supporting DisplayPort HBR2 and high definition multimedia interface (HDMI) applications requiring 4k2k 60Hz refresh rates. The HD3SS215 can be configured to support two sources to one sink or one source to two sinks. To support these video standards the HD3SS215 also switches the display data channel (DDC) and hot plug detect (HPD) signals for HDMI or digital video interface (DVI) applications. It also switches the auxiliary (AUX) and hot plug detect (HPD) signals for DisplayPort applications. The flexibility the HD3SS215 provides by supporting both wide common mode and AC or DC coupled links makes it ideal for many applications.
