HD3SS2522RHUR Texas Instruments - Yeehing Electronics

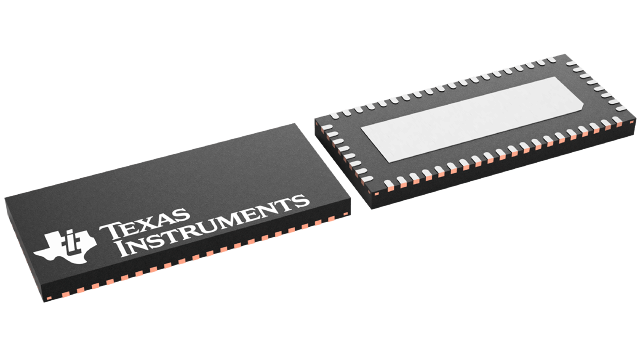

10Gbps USB 3.1 Type-C MUX with DFP Controller
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.452 |
| 100 — 249 | 3.025 |
| 250 — 999 | 2.121 |
| 1,000 + | 1.20 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | USB Interface IC |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | WQFN-56 |
| Series | HD3SS2522 |
| Product | USB Controllers |
| Type | Type-C |
| Port Type | DFP |
| Standard | USB-C 1.1 |
| Speed | Super Speed |
| Data Rate | 10 Gb/s |
| Operating Supply Current | 600 uA |
| Minimum Operating Temperature | 0 C |
| Maximum Operating Temperature | + 70 C |
| Packaging | Reel |
| Brand | Texas Instruments |
| Interface Type | USB |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 3.3 V |
| Product Type | USB Interface IC |
| Protocol Supported | USB-C, USB 3.1 |
| Factory Pack Quantity | 2000 |
| Subcategory | Interface ICs |
| Tradename | USB Type-C |
| Unit Weight | 0.004586 oz |
For more information, please refer to datasheet
Documents
| HD3SS2522RHUR Datasheet |
More Information
HD3SS2522 is a 2:1 USB mux with Configuration Channel (CC) logic with Downstream Facing Port (DFP) support. The HD3SS2522 presents itself as a DFP according to the USB Type-C Spec. The CC logic block monitors the CC1 and CC2 pins voltages to determine when a USB port has been attached. Once a USB port has been attached, the CC logic also determines the orientation of the cable and configures the USB SS mux accordingly.
