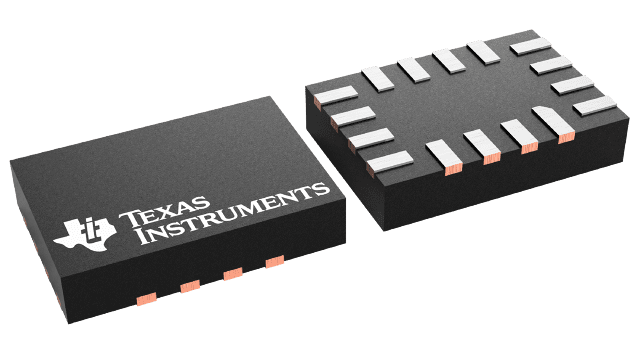

HD3SS3202RSVT Texas Instruments - Yeehing Electronics
2-channel 10-Gbps 2:1/1:2 USB 3.1 differential mux/demux
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.046 |
| 100 — 249 | 0.864 |
| 250 — 999 | 0.621 |
| 1,000 + | 0.27 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | USB Interface IC |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | UQFN-16 |
| Series | HD3SS3202 |
| Type | Multiplexer/Demultiplexer |
| Port Type | DFP, DRP, UFP |
| Standard | USB 3.1 Gen 2 |
| Speed | High Speed |
| Data Rate | 10 Gb/s |
| Supply Voltage - Min | 3 V |
| Supply Voltage - Max | 3.6 V |
| Operating Supply Current | 500 uA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Brand | Texas Instruments |
| Number of Ports | 3 Port |
| Operating Supply Voltage | 3.3 V |
| Product Type | USB Interface IC |
| Factory Pack Quantity | 250 |
| Subcategory | Interface ICs |
| Unit Weight | 0.000240 oz |
For more information, please refer to datasheet
Documents
| HD3SS3202RSVT Datasheet |
More Information
The HD3SS3202 is a high-speed bidirectional passive switch in mux or demux configurations suited for USB Type-C™ applications that support USB 3.1 Gen 1 and Gen 2 data rates. Based on control pin SEL, the device supplies switching on differential channels between Port B or Port C to Port A.
