Texas Instruments

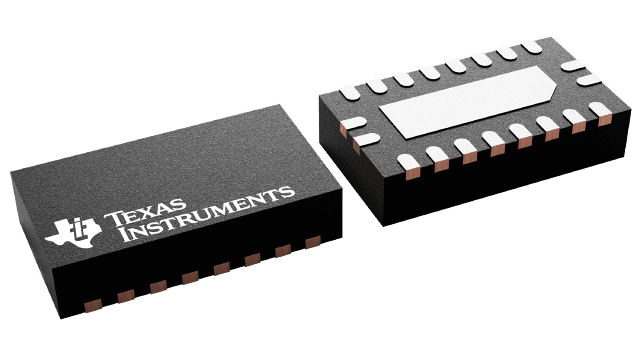

HD3SS3212IRKSR
HD3SS3212IRKSR
Regular price
$0.56 USD
Regular price
Sale price
$0.56 USD
Unit price
per
Couldn't load pickup availability
HD3SS3212IRKSR Texas Instruments - Yeehing Electronics
2-channel 10-Gbps 2:1/1:2 USB 3.1 differential mux/demux
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.785 |
| 100 — 249 | 1.474 |
| 250 — 999 | 1.059 |
| 1,000 + | 0.56 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Multiplexer Switch ICs |
| RoHS | Y |
| Product | Multiplexers/Demultiplexers |
| Number of Channels | 2 Channel |
| Configuration | 2 x 2 |
| On Resistance - Max | 8 Ohms |
| On Time - Max | 500 ns |
| Off Time - Max | 500 ns |
| Operating Supply Voltage | 3.3 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-20 |
| Packaging | Reel |
| Bandwidth | 8 GHz |
| Height | 1 mm |
| Length | 4.6 mm |
| Series | HD3SS3212 |
| Supply Type | Single Supply |
| Width | 2.6 mm |
| Brand | Texas Instruments |
| Off Isolation - Typ | - 19 dB |
| Supply Current - Max | 800 uA |
| Moisture Sensitive | Yes |
| Product Type | Multiplexer Switch ICs |
| Propagation Delay Time | 80 ps |
| Factory Pack Quantity | 3000 |
| Subcategory | Switch ICs |
| Supply Voltage - Max | 3.6 V |
| Supply Voltage - Min | 3 V |
| Tradename | USB Type-C |
| Unit Weight | 0.002469 oz |
For more information, please refer to datasheet
Documents
| HD3SS3212IRKSR Datasheet |
More Information
The HD3SS3212 is a high-speed bidirectional passive switch in mux or demux configurations suited for USB Type-C™ application supporting USB 3.1 Gen 1 and Gen 2 data rates. Based on control pin SEL, the device provides switching on differential channels between Port B or Port C to Port A.
