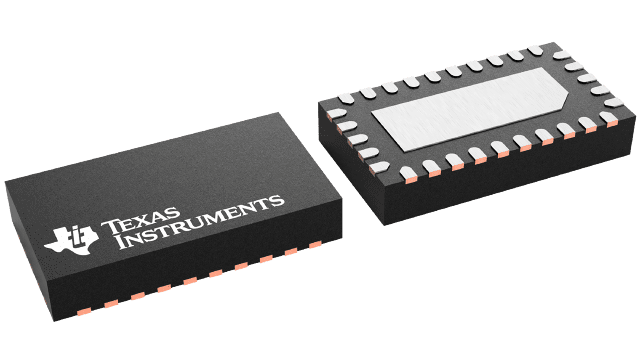

HD3SS3220IRNHR Texas Instruments - Yeehing Electronics
10-Gbps USB 3.1 Type-C 2:1 mux with DRP Controller
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.424 |
| 100 — 249 | 2.124 |
| 250 — 999 | 1.489 |
| 1,000 + | 0.84 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | USB Interface IC |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | WQFN-30 |
| Series | HD3SS3220 |
| Product | USB Controllers |
| Port Type | DFP |
| Standard | USB 3.1 |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Product Type | USB Interface IC |
| Factory Pack Quantity | 3000 |
| Subcategory | Interface ICs |
| Tradename | USB Type-C |
For more information, please refer to datasheet
Documents
| HD3SS3220IRNHR Datasheet |
More Information
HD3SS3220 is a USB SuperSpeed (SS) 2:1 mux with DRP port controller. The device provides Channel Configuration (CC) logic and 5V VCONN sourcing for ecosystems implementing USB Type-C. The HD3SS3220 can be configured as a Downstream Facing Port (DFP), Upstream Facing Port (UFP) or a Dual Role Port (DRP) making it ideal for any application.
