Texas Instruments

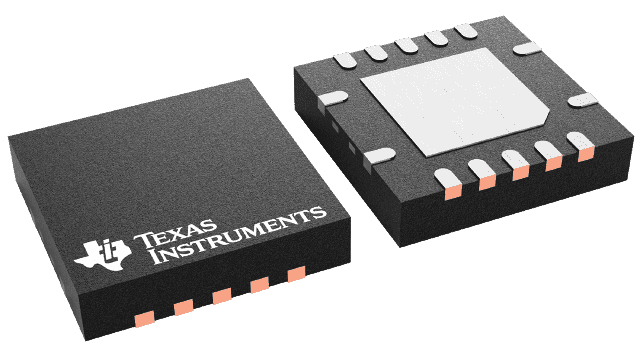

HD3SS3411IRWAT
HD3SS3411IRWAT
Regular price
$0.55 USD
Regular price
Sale price
$0.55 USD
Unit price
per
Couldn't load pickup availability
HD3SS3411IRWAT Texas Instruments - Yeehing Electronics
3.3-V PCI Express 3.0 1-channel analog differential switch
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.457 |
| 100 — 249 | 1.188 |
| 250 — 999 | 0.934 |
| 1,000 + | 0.55 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Multiplexer Switch ICs |
| RoHS | Y |
| Product | Multiplexers/Demultiplexers |
| Number of Channels | 1 Channel |
| Configuration | 1 x 2 |
| On Resistance - Max | 8 Ohms |
| Operating Supply Voltage | 3.3 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 105 C |
| Mounting Style | SMD/SMT |
| Package / Case | WQFN-14 |
| Packaging | Reel |
| Bandwidth | 7.5 GHz |
| Series | HD3SS3411 |
| Supply Type | Single Supply |
| Brand | Texas Instruments |
| Off Isolation - Typ | - 19 dB |
| Supply Current - Max | 800 uA |
| Development Kit | HD3SS3411RWAEVM |
| Moisture Sensitive | Yes |
| Product Type | Multiplexer Switch ICs |
| Propagation Delay Time | 0.05 ns |
| Factory Pack Quantity | 250 |
| Subcategory | Switch ICs |
| Supply Voltage - Max | 3.6 V |
| Supply Voltage - Min | 3 V |
| Switch Voltage - Max | 3.6 V |
| Unit Weight | 0.001030 oz |
For more information, please refer to datasheet
Documents
| HD3SS3411IRWAT Datasheet |
More Information
The HD3SS3411 is a high-speed bi-directional passive switch in multiplexer or demultiplexer configurations. Based on control pin SEL, the device provides switching of differential channels between Port B to Port A or Port C to Port A.
