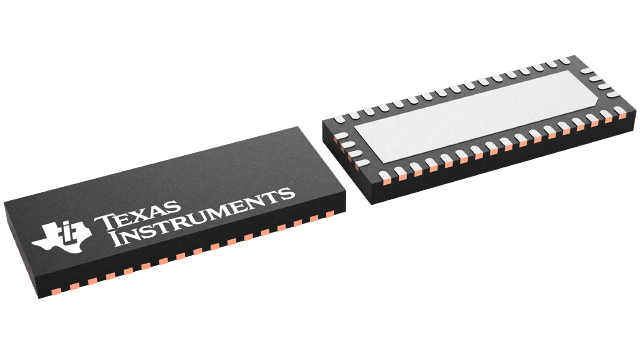

HD3SS3412ARUAT Texas Instruments - Yeehing Electronics
4-channel high-performance differential switch
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.247 |
| 100 — 249 | 1.856 |
| 250 — 999 | 1.333 |
| 1,000 + | 0.80 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| HD3SS3412ARUAT Datasheet |
More Information
The HD3SS3412A device is a high-speed passive switch capable of switching four differential channels, including applications such as two full PCI Express x1 lanes from one source to one of two target locations in a PC or server application. With its bidirectional capability, the HD3SS3412A also supports applications that allow connections between one target and two source devices, such as a shared peripheral between two platforms. The HD3SS3412A has a single control line (SEL pin) which can be used to control the signal path between Port A and either Port B or Port C.
