Texas Instruments

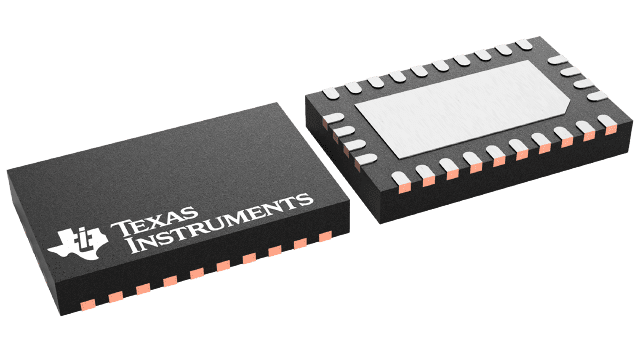

HD3SS460IRHRR
HD3SS460IRHRR
Regular price
$0.67 USD
Regular price
Sale price
$0.67 USD
Unit price
per
Couldn't load pickup availability
HD3SS460IRHRR Texas Instruments - Yeehing Electronics
4x6-channel USB Type-C™ Alternate Mode mux/demux
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.139 |
| 100 — 249 | 1.767 |
| 250 — 999 | 1.269 |
| 1,000 + | 0.67 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | USB Switch ICs |
| RoHS | Y |
| Product | USB Type-C |
| Configuration | 4 x 6 |
| On Resistance - Max | 14 Ohms |
| On Time - Max | 3 us |
| Off Time - Max | 1 us |
| Operating Supply Voltage | 3.3 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | WQFN-28 |
| Packaging | Reel |
| Bandwidth | 5.4 GHz |
| Series | HD3SS460 |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Product Type | USB Switch ICs |
| Factory Pack Quantity | 3000 |
| Subcategory | Switch ICs |
| Supply Voltage - Max | 3.6 V |
| Supply Voltage - Min | 3 V |
| Tradename | USB Type-C |
| Unit Weight | 0.001411 oz |
For more information, please refer to datasheet
Documents
| HD3SS460IRHRR Datasheet |
More Information
The HD3SS460 is a high-speed bi-directional passive switch in mux or demux configurations. Based on control pin POL the device provides switching to accommodate connector flipping. The device also provides muxing between 2Ch Data / 2Ch Video and all 4Ch Video based on control pin AMSEL.
