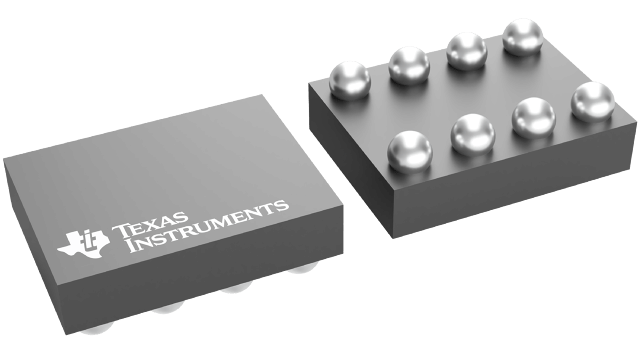

HDC1010YPAR Texas Instruments - Yeehing Electronics

±2% low-power digital humidity and temperature sensor in WCSP

Pricing (USD)

Quantity	Unit Price
1 — 99	2.493
100 — 249	2.059
250 — 999	1.479
1,000 +	0.78

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Board Mount Humidity Sensors
RoHS	Y
RH Range	0 % to 100 %
RH Accuracy	+/- 2 %
Mounting Style	SMD/SMT
Output Type	Digital
Interface Type	I2C
Resolution	14 bit
Full Temp Accuracy	+/- 0.2 C
Operating Supply Current	1.3 uA
Supply Voltage - Min	2.7 V
Supply Voltage - Max	5.5 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Package / Case	DSBGA-8
Packaging	Reel
Description/Function	Digital humidity sensor with temperature sensor
Product	Board Mount
Series	HDC1010
Brand	Texas Instruments
Product Type	Humidity Sensors
Factory Pack Quantity	3000
Subcategory	Sensors
Unit Weight	0.001235 oz

For more information, please refer to datasheet

Documents

HDC1010YPAR Datasheet

More Information

The HDC1010 is a digital humidity sensor with integrated temperature sensor that provides excellent measurement accuracy at very low power. The HDC1010 operates over a wide supply range, and is a low cost, low power alternative to competitive solutions in a wide range of common applications. The innovative WLCSP (Wafer Level Chip Scale Package) simplifies board design with the use of an ultra-compact package. The sensing element of the HDC1010 is placed on the bottom part of the device, which makes the HDC1010 more robust against dirt, dust, and other environmental contaminants. The humidity and temperature sensors are factory calibrated and the calibration data is stored in the on-chip non-volatile memory.
