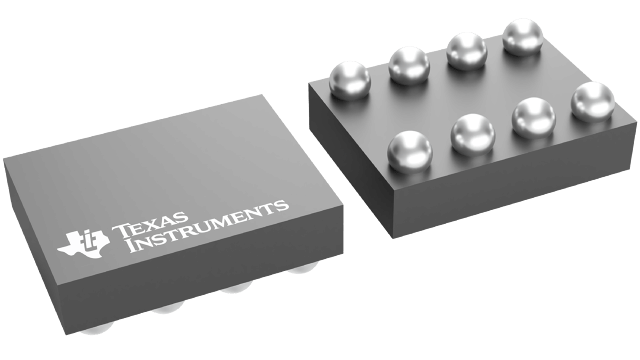

HDC1010YPAT Texas Instruments - Yeehing Electronics
±2% low-power digital humidity and temperature sensor in WCSP
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 2.993 |
100 — 249 | 2.472 |
250 — 999 | 1.776 |
1,000 + | 0.94 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Board Mount Humidity Sensors |
RoHS | Y |
RH Range | 0 % to 100 % |
RH Accuracy | +/- 2 % |
Mounting Style | SMD/SMT |
Output Type | Digital |
Interface Type | I2C |
Resolution | 14 bit |
Full Temp Accuracy | +/- 0.2 C |
Operating Supply Current | 1.3 uA |
Supply Voltage - Min | 2.7 V |
Supply Voltage - Max | 5.5 V |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Package / Case | DSBGA-8 |
Packaging | Reel |
Description/Function | Digital humidity sensor with temperature sensor |
Product | Board Mount |
Series | HDC1010 |
Brand | Texas Instruments |
Product Type | Humidity Sensors |
Factory Pack Quantity | 250 |
Subcategory | Sensors |
Unit Weight | 0.000123 oz |
For more information, please refer to datasheet
Documents
HDC1010YPAT Datasheet |
More Information
The HDC1010 is a digital humidity sensor with integrated temperature sensor that provides excellent measurement accuracy at very low power. The HDC1010 operates over a wide supply range, and is a low cost, low power alternative to competitive solutions in a wide range of common applications. The innovative WLCSP (Wafer Level Chip Scale Package) simplifies board design with the use of an ultra-compact package. The sensing element of the HDC1010 is placed on the bottom part of the device, which makes the HDC1010 more robust against dirt, dust, and other environmental contaminants. The humidity and temperature sensors are factory calibrated and the calibration data is stored in the on-chip non-volatile memory.
