Texas Instruments
HDC1080DMBT
HDC1080DMBT
Regular price
$1.02 USD
Regular price
Sale price
$1.02 USD
Unit price
per
Couldn't load pickup availability

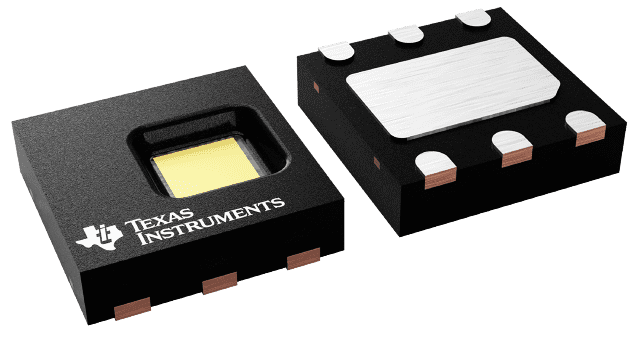

HDC1080DMBT Texas Instruments - Yeehing Electronics
2% RH low-power digital relative humidity sensor
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.681 |
| 100 — 249 | 2.186 |
| 250 — 999 | 1.718 |
| 1,000 + | 1.02 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Board Mount Humidity Sensors |
| RoHS | Y |
| RH Range | 0 % to 100 % |
| RH Accuracy | +/- 2 % |
| Mounting Style | SMD/SMT |
| Output Type | Digital |
| Interface Type | I2C |
| Resolution | 14 bit |
| Full Temp Accuracy | +/- 0.2 C |
| Operating Supply Current | 1.3 uA |
| Supply Voltage - Min | 2.7 V |
| Supply Voltage - Max | 5.5 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Package / Case | WSON-6 |
| Packaging | Reel |
| Description/Function | High accuracy digital humidity sensor with temperature sensor |
| Product | Board Mount |
| Series | HDC1080 |
| Brand | Texas Instruments |
| Product Type | Humidity Sensors |
| Factory Pack Quantity | 250 |
| Subcategory | Sensors |
| Unit Weight | 0.000914 oz |
For more information, please refer to datasheet
Documents
| HDC1080DMBT Datasheet |
More Information
The HDC1080 is a digital humidity sensor with integrated temperature sensor that provides excellent measurement accuracy at very low power. The HDC1080 operates over a wide supply range, and is a low cost, low power alternative to competitive solutions in a wide range of common applications. The humidity and temperature sensors are factory calibrated.
