HDC2010YPAR Texas Instruments - Yeehing Electronics

2% RH ultra-small, low-power digital relative humidity sensor

Pricing (USD)

Quantity	Unit Price
1 — 99	2.244
100 — 249	1.854
250 — 999	1.332
1,000 +	0.70

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Minimum Operating Temperature	-40
Maximum Operating Temperature	125
Factory Pack Quantity	3,000

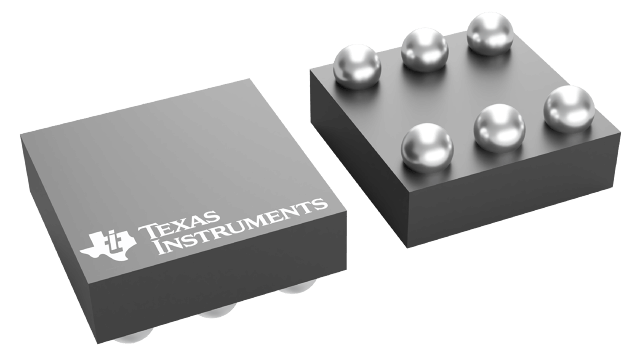

Package | Pins	DSBGA (YPA) | 6

For more information, please refer to datasheet

Documents

HDC2010YPAR Datasheet

More Information

The HDC2010 is an integrated humidity and temperature sensor that provides high accuracy measurements with very low power consumption, in an ultra-compact WLCSP (Wafer Level Chip Scale Package). The sensing element of the HDC2010 is placed on the bottom part of the device, which makes the HDC2010 more robust against dirt, dust, and other environmental contaminants. The capacitive-based sensor includes new integrated digital features and a heating element to dissipate condensation and moisture. The HDC2010 digital features include programmable interrupt thresholds to provide alerts/system wake-ups without requiring a microcontroller to be continuously monitoring the system. This, combined with programmable sampling intervals, low inherent power consumption, and support for 1.8-V supply voltage, make the HDC2010 well suited for battery-operated systems.
