Description

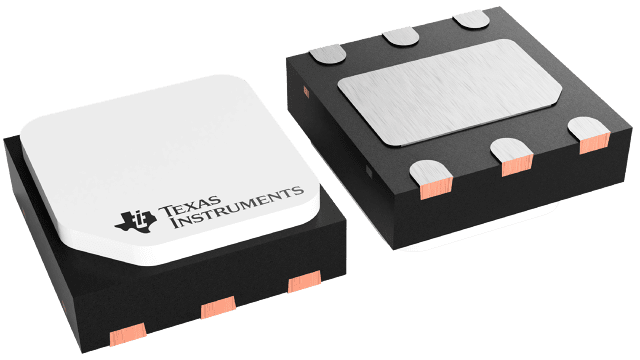

HDC2022DEPT Texas Instruments - Yeehing Electronics
2% RH ultra-low-power digital relative humidity sensor, IP67 filter
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.359 |
| 100 — 249 | 2.944 |
| 250 — 999 | 2.064 |
| 1,000 + | 1.33 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| HDC2022DEPT Datasheet |
More Information
The HDC2022 is an integrated relative humidity and temperature sensor with a factory-installed PTFE membrane cover over the opening of the relative humidity sensor. The cover is a hydrophobic micropourous PTFE foil that protects against dust and water according to IP67 specifications. The cover is designed to adhere to the package over lifetime operation while maintaining the same response time as a sensor without the membrane. The cover has a filtration efficiency of 99.99% down to a particle size of 100 nm.
