Texas Instruments

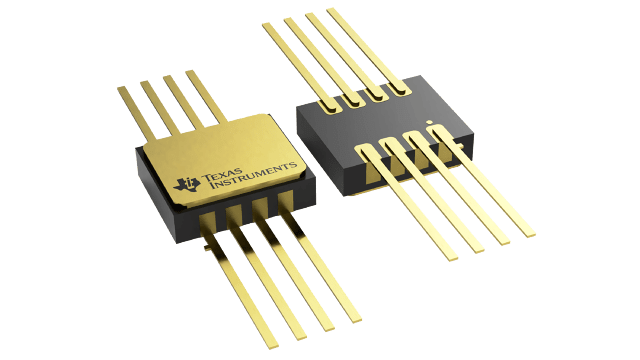

INA129SHKJ
INA129SHKJ
Regular price
$61.60 USD
Regular price
Sale price
$61.60 USD
Unit price
per
Couldn't load pickup availability
INA129SHKJ Texas Instruments - Yeehing Electronics
High Temperature Precision, Low Power Instrumentation Amplifiers
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 117.04 |
| 100 — 249 | 113.52 |
| 250 — 999 | 94.512 |
| 1,000 + | 61.60 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Instrumentation Amplifiers |
| RoHS | Y |
| Series | INA129-HT |
| Number of Channels | 1 Channel |
| SR - Slew Rate | 4 V/us |
| CMRR - Common Mode Rejection Ratio | 113 dB |
| Ib - Input Bias Current | 50 nA |
| Vos - Input Offset Voltage | 25 uV |
| Supply Voltage - Max | 36 V |
| Supply Voltage - Min | 4.5 V |
| Operating Supply Current | 2 mA |
| Minimum Operating Temperature | - 55 C |
| Maximum Operating Temperature | + 210 C |
| Mounting Style | SMD/SMT |
| Package / Case | CFP-8 |
| Packaging | Tube |
| Amplifier Type | Instrumentation Amplifier |
| Bandwidth | 1.3 MHz |
| Product | Instrumentation Amplifiers |
| Brand | Texas Instruments |
| 3 dB Bandwidth | 200 kHz |
| Dual Supply Voltage | 2.25 V to 18 V |
| en - Input Voltage Noise Density | 20 nV/sqrt Hz |
| Gain V/V | 1 V/V to 10000 V/V |
| INL - Integral Nonlinearity | 0.7 % |
| Operating Supply Voltage | 4.5 V to 36 V |
| Output Current per Channel | 15 mA |
| Product Type | Instrumentation Amplifiers |
| Factory Pack Quantity | 1 |
| Subcategory | Amplifier ICs |
| Vcm - Common Mode Voltage | +/- 40 V |
For more information, please refer to datasheet
Documents
| INA129SHKJ Datasheet |
More Information
The INA128-HT and INA129-HT are low-power, general-purpose instrumentation amplifiers offering excellent accuracy. The versatile three-operational-amplifier design and small size make them ideal for a wide range of applications. Current-feedback input circuitry provides wide bandwidth even at high gain. A single external resistor sets any gain from 1 to 10000. The INA128-HT provides an industry-standard gain equation; the INA129-HT gain equation is compatible with the AD620.
