INA185A1IDRLT Texas Instruments - Yeehing Electronics

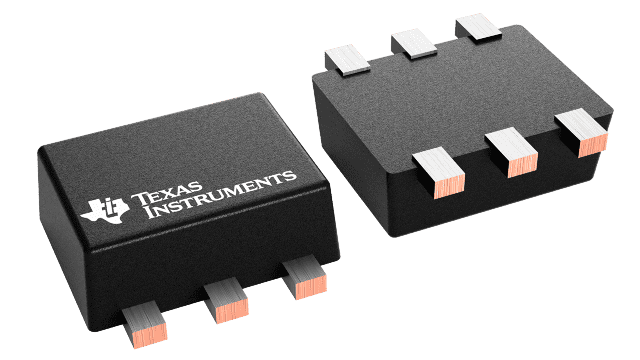

26V, 350kHz, bi-directional, high-precision current sense amplifier in ultra small (sot-563) package
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.806 |
| 100 — 249 | 0.666 |
| 250 — 999 | 0.478 |
| 1,000 + | 0.25 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Current Sense Amplifiers |
| RoHS | Y |
| Series | INA185 |
| Number of Channels | 1 Channel |
| GBP - Gain Bandwidth Product | 350 kHz |
| Vcm - Common Mode Voltage | - 0.2 V to + 26 V |
| CMRR - Common Mode Rejection Ratio | 86 dB |
| Ib - Input Bias Current | 75 uA |
| Vos - Input Offset Voltage | 100 uV |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 2.7 V |
| Operating Supply Current | 260 uA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | SOT-563-6 |
| Packaging | Reel |
| Product | Current Sense Amplifiers |
| Brand | Texas Instruments |
| Shutdown | No Shutdown |
| en - Input Voltage Noise Density | 40 nV/sqrt Hz |
| Gain Error | 0.05 % |
| Gain V/V | 20 V/V |
| Ios - Input Offset Current | 0.05 uA |
| Product Type | Current Sense Amplifiers |
| SR - Slew Rate | 2 V/us |
| Factory Pack Quantity | 250 |
| Subcategory | Amplifier ICs |
For more information, please refer to datasheet
Documents
| INA185A1IDRLT Datasheet |
More Information
The INA185 current sense amplifier is designed for use in cost-sensitive space constrained applications. This device is a bidirectional, current-sense amplifier (also called a current-shunt monitor) that senses voltage drop across a current-sense resistor at common-mode voltages from –0.2 V to +26 V, independent of the supply voltage. The INA185 integrates a matched resistor gain network in four, fixed-gain device options: 20 V/V, 50 V/V, 100 V/V, or 200 V/V. This matched gain resistor network minimizes gain error and reduces the temperature drift.
