Texas Instruments
INA190A2IRSWR
INA190A2IRSWR
Regular price
$0.83 USD
Regular price
Sale price
$0.83 USD
Unit price
per
Couldn't load pickup availability

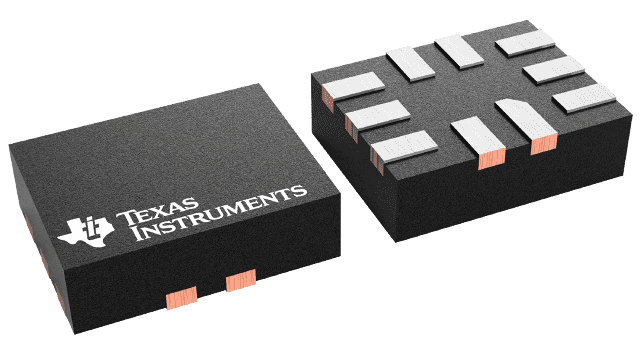

INA190A2IRSWR Texas Instruments - Yeehing Electronics
40-V, bidirectional, ultraprecise current sense amplifier with picoamp IB & ENABLE
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.33 |
| 100 — 249 | 1.924 |
| 250 — 999 | 1.382 |
| 1,000 + | 0.83 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Current Sense Amplifiers |
| RoHS | Y |
| Series | INA190 |
| Number of Channels | 1 Channel |
| GBP - Gain Bandwidth Product | 37 kHz |
| Vcm - Common Mode Voltage | 40 V |
| CMRR - Common Mode Rejection Ratio | 132 dB |
| Ib - Input Bias Current | 3 nA |
| Vos - Input Offset Voltage | - 3 uV |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 1.7 V |
| Operating Supply Current | 48 uA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | UQFN-10 |
| Packaging | Reel |
| Amplifier Type | Current-Shunt Monitor |
| Features | Bi-directional, Low-side Capable |
| Product | Current Sense Amplifiers |
| Brand | Texas Instruments |
| Shutdown | Shutdown |
| Development Kit | INA190EVM |
| en - Input Voltage Noise Density | 75 nV/sqrt Hz |
| Gain Error | - 0.06 % |
| Gain V/V | 50 V/V |
| Ios - Input Offset Current | 0.07 nA |
| Product Type | Current Sense Amplifiers |
| Settling Time | 30 us |
| SR - Slew Rate | 0.3 V/us |
| Factory Pack Quantity | 3000 |
| Subcategory | Amplifier ICs |
For more information, please refer to datasheet
Documents
| INA190A2IRSWR Datasheet |
More Information
The INA190 is a low-power, voltage-output, current-shunt monitor (also called a current-sense amplifier). This device is commonly used for overcurrent protection, precision current measurement for system optimization, or in closed-loop feedback circuits. The INA190 can sense drops across shunts at common-mode voltages from –0.2 V to +40 V, independent of the supply voltage.
