INA190A5IRSWT Texas Instruments - Yeehing Electronics

40-V, bidirectional, ultraprecise current sense amplifier with picoamp IB & ENABLE

Pricing (USD)

Quantity	Unit Price
1 — 99	2.796
100 — 249	2.309
250 — 999	1.659
1,000 +	0.87

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Current Sense Amplifiers
RoHS	Y
Series	INA190
Number of Channels	1 Channel
GBP - Gain Bandwidth Product	27 kHz
Vcm - Common Mode Voltage	40 V
CMRR - Common Mode Rejection Ratio	132 dB
Ib - Input Bias Current	3 nA
Vos - Input Offset Voltage	- 3 uV
Supply Voltage - Max	5.5 V
Supply Voltage - Min	1.7 V
Operating Supply Current	48 uA
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Mounting Style	SMD/SMT

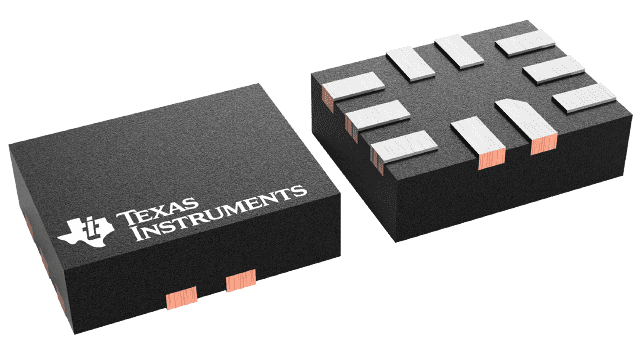

Package / Case	UQFN-10
Packaging	Reel
Amplifier Type	Current-Shunt Monitor
Features	Bi-directional, Low-side Capable
Product	Current Sense Amplifiers
Brand	Texas Instruments
Shutdown	Shutdown
Development Kit	INA190EVM
en - Input Voltage Noise Density	75 nV/sqrt Hz
Gain Error	- 0.08 %
Gain V/V	500 V/V
Ios - Input Offset Current	0.07 nA
Product Type	Current Sense Amplifiers
Settling Time	30 us
SR - Slew Rate	0.3 V/us
Factory Pack Quantity	250
Subcategory	Amplifier ICs

For more information, please refer to datasheet

Documents

INA190A5IRSWT Datasheet

More Information

The INA190 is a low-power, voltage-output, current-shunt monitor (also called a current-sense amplifier). This device is commonly used for overcurrent protection, precision current measurement for system optimization, or in closed-loop feedback circuits. The INA190 can sense drops across shunts at common-mode voltages from –0.2 V to +40 V, independent of the supply voltage.
