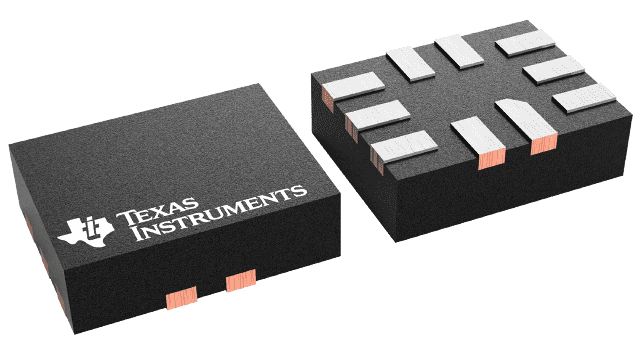

INA199A2RSWT Texas Instruments - Yeehing Electronics

26V, bi-directional current sense amplifier

Pricing (USD)

Quantity	Unit Price
1 — 99	0.889
100 — 249	0.684
250 — 999	0.504
1,000 +	0.25

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Current Sense Amplifiers
RoHS	Y
Series	INA206
Number of Channels	1 Channel
GBP - Gain Bandwidth Product	30 kHz
Vcm - Common Mode Voltage	- 0.1 V to 26 V
CMRR - Common Mode Rejection Ratio	100 dB
Vos - Input Offset Voltage	150 uV
Supply Voltage - Max	26 V
Supply Voltage - Min	2.7 V
Operating Supply Current	115 uA
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Mounting Style	SMD/SMT
Package / Case	UQFN-10
Packaging	Reel
Accuracy	1.5 %
Features	Bi-directional, Low-side Capable
Product	Current Sense Amplifiers
Brand	Texas Instruments
Gain Error	0.03 %
Gain V/V	100 V/V
Product Type	Current Sense Amplifiers
Factory Pack Quantity	250
Subcategory	Amplifier ICs
Unit Weight	0.000353 oz

For more information, please refer to datasheet

Documents

INA199A2RSWT Datasheet

More Information

The INA199 series of voltage-output, current-shunt monitors (also called current-sense amplifiers) are commonly used for overcurrent protection, precision-current measurement for system optimization, or in closed-loop feedback circuits. This series of devices can sense drops across shunt resistors at common-mode voltages from –0.3 V to 26 V, independent of the supply voltage. Three fixed gains are available: 50 V/V, 100 V/V, and 200 V/V. The low offset of the zero-drift architecture enables current sensing with maximum drops across the shunt as low as 10-mV full-scale.
