Description

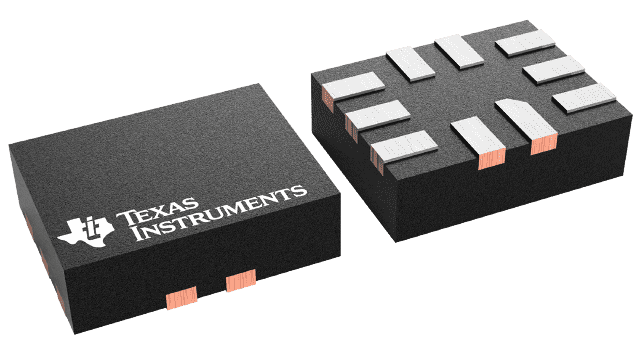

INA199C1RSWR Texas Instruments - Yeehing Electronics
26V, bi-directional current sense amplifier
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 0.588 |
100 — 249 | 0.452 |
250 — 999 | 0.333 |
1,000 + | 0.17 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
INA199C1RSWR Datasheet |
More Information
The INA199 series of voltage-output, current-shunt monitors (also called current-sense amplifiers) are commonly used for overcurrent protection, precision-current measurement for system optimization, or in closed-loop feedback circuits. This series of devices can sense drops across shunt resistors at common-mode voltages from –0.3 V to 26 V, independent of the supply voltage. Three fixed gains are available: 50 V/V, 100 V/V, and 200 V/V. The low offset of the zero-drift architecture enables current sensing with maximum drops across the shunt as low as 10-mV full-scale.
