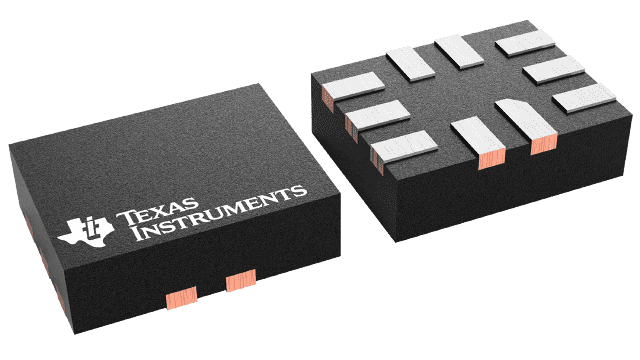

INA199C2RSWT Texas Instruments - Yeehing Electronics

26V, bi-directional current sense amplifier

Pricing (USD)

Quantity	Unit Price
1 — 99	1.082
100 — 249	0.832
250 — 999	0.613
1,000 +	0.31

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

INA199C2RSWT Datasheet

More Information

The INA199 series of voltage-output, current-shunt monitors (also called current-sense amplifiers) are commonly used for overcurrent protection, precision-current measurement for system optimization, or in closed-loop feedback circuits. This series of devices can sense drops across shunt resistors at common-mode voltages from –0.3 V to 26 V, independent of the supply voltage. Three fixed gains are available: 50 V/V, 100 V/V, and 200 V/V. The low offset of the zero-drift architecture enables current sensing with maximum drops across the shunt as low as 10-mV full-scale.
