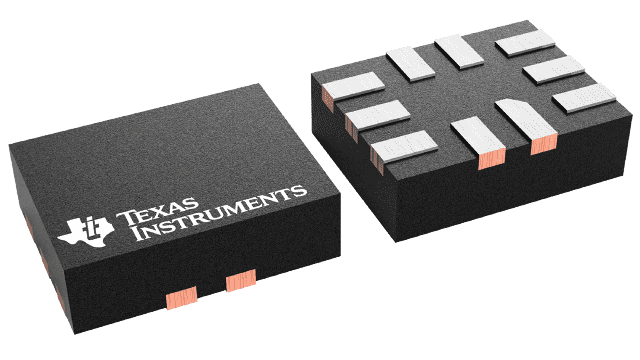

INA199C3RSWR Texas Instruments - Yeehing Electronics

26V, bi-directional current sense amplifier

Pricing (USD)

Quantity	Unit Price
1 — 99	0.588
100 — 249	0.452
250 — 999	0.333
1,000 +	0.19

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Current Sense Amplifiers
RoHS	Y
Series	INA199
Number of Channels	1 Channel
GBP - Gain Bandwidth Product	14 kHz
Vcm - Common Mode Voltage	- 0.1 V to 26 V
CMRR - Common Mode Rejection Ratio	100 dB
Ib - Input Bias Current	28 uA
Vos - Input Offset Voltage	5 uV
Supply Voltage - Max	26 V
Supply Voltage - Min	2.7 V
Operating Supply Current	65 uA
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Mounting Style	SMD/SMT
Package / Case	UQFN-10
Packaging	Reel
Features	Bi-directional, Low-side Capable
Product	Current Sense Amplifiers
Brand	Texas Instruments
Shutdown	Shutdown
Topology	Zero Drift
en - Input Voltage Noise Density	25 nV/sqrt Hz
Gain Error	0.03 %
Gain V/V	200 V/V
Ios - Input Offset Current	20 nA
Product Type	Current Sense Amplifiers
SR - Slew Rate	400 mV/us
Factory Pack Quantity	3000
Subcategory	Amplifier ICs

For more information, please refer to datasheet

Documents

INA199C3RSWR Datasheet

More Information

The INA199 series of voltage-output, current-shunt monitors (also called current-sense amplifiers) are commonly used for overcurrent protection, precision-current measurement for system optimization, or in closed-loop feedback circuits. This series of devices can sense drops across shunt resistors at common-mode voltages from –0.3 V to 26 V, independent of the supply voltage. Three fixed gains are available: 50 V/V, 100 V/V, and 200 V/V. The low offset of the zero-drift architecture enables current sensing with maximum drops across the shunt as low as 10-mV full-scale.
