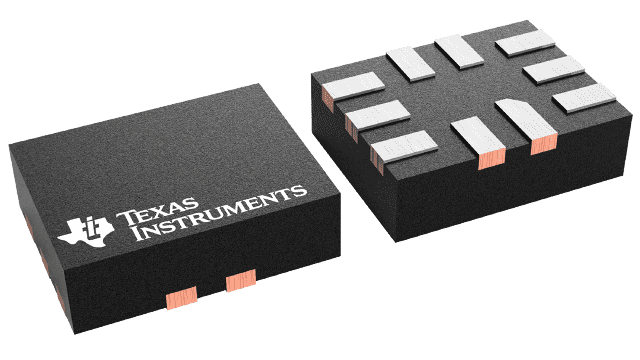

INA214AIRSWT Texas Instruments - Yeehing Electronics

26V, bi-directional, high-precision current sense amplifier

Pricing (USD)

Quantity Unit Price
1 — 99 1.156
100 — 249 0.955
250 — 999 0.686
1,000 + 0.36

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Current Sense Amplifiers
RoHS Y
Series INA214
Number of Channels 1 Channel
GBP - Gain Bandwidth Product 30 kHz
Vcm - Common Mode Voltage - 0.3 V to 26 V
CMRR - Common Mode Rejection Ratio 105 dB
Vos - Input Offset Voltage 60 uV
Supply Voltage - Max 26 V
Supply Voltage - Min 2.7 V
Operating Supply Current 115 uA
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 125 C
Mounting Style SMD/SMT
Package / Case UQFN-10
Packaging Reel
Amplifier Type Current Sense
Features Analog output, bidirectional, low-side capable,
Product Current Sense Amplifiers
Brand Texas Instruments
Topology Current Shunt Feedback
Development Kit INA210-214EVM
Gain Error 0.02 %
Gain V/V 100 V/V
Product Type Current Sense Amplifiers
Factory Pack Quantity 250
Subcategory Amplifier ICs
Unit Weight 0.000215 oz

For more information, please refer to datasheet

Documents

INA214AIRSWT Datasheet

More Information

The INA21x are voltage-output, current-shunt monitors (also called current-sense amplifiers) that are commonly used for overcurrent protection, precision-current measurement for system optimization, or in closed-loop feedback circuits. This series of devices can sense drops across shunts at common-mode voltages from –0.3 V to 26 V, independent of the supply voltage. Six fixed gains are available: 50 V/V, 75 V/V, 100 V/V, 200 V/V, 500 V/V, or 1000 V/V. The low offset of the zero-drift architecture enables current sensing with maximum drops across the shunt as low as 10-mV full-scale.
