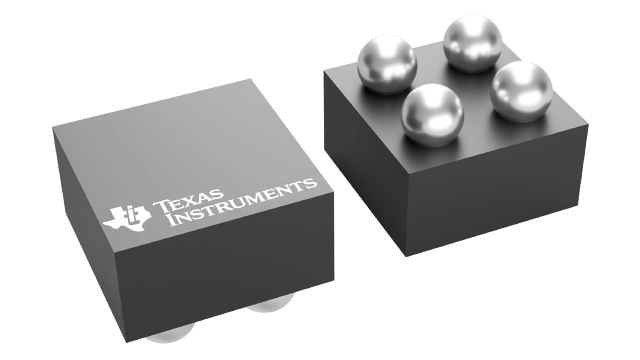

INA216A1YFFT Texas Instruments - Yeehing Electronics

1.8 to 5.5V, high-precision current sense amplifier in wcsp

Pricing (USD)

Quantity	Unit Price
1 — 99	0.741
100 — 249	0.57
250 — 999	0.42
1,000 +	0.24

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Current & Power Monitors & Regulators
RoHS	Y
Product	Current Monitors
Supply Voltage - Max	5.5 V
Supply Voltage - Min	1.8 V
Operating Supply Current	30 uA
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Mounting Style	SMD/SMT
Package / Case	DSBGA-4
Packaging	Reel
Bandwidth	20 kHz
Description/Function	TINY, LOW POWER CURRENT SENSE AMPLIFIER FOR HIGH SIDE SENSING
Features	Small WCSP Package
Operating Temperature Range	- 40 C to + 125 C
Series	INA216
Brand	Texas Instruments
Gain	25 V/V
Input Voltage Range	1.8 V to 5.5 V
Ib - Input Bias Current	3 uA
Operating Supply Voltage	1.8 V to 5.5 V
Product Type	Current & Power Monitors & Regulators
Factory Pack Quantity	250
Subcategory	PMIC - Power Management ICs
Vos - Input Offset Voltage	100 uV
Unit Weight	0.000025 oz

For more information, please refer to datasheet

Documents

INA216A1YFFT Datasheet

More Information

The INA216 is a high-side voltage output current shunt monitor that can sense drops across shunts at common-mode voltages from +1.8V to +5.5V. Four fixed gains are available: 25V/V, 50V/V, 100V/V, and 200V/V. The low offset of the Zerø-Drift architecture enables current sensing with maximum drops across the shunt as low as 10mV full-scale, or with wide dynamic ranges of over 1000:1.
