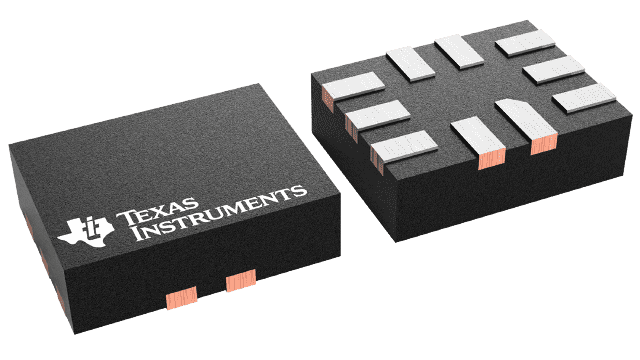

INA216A2RSWR Texas Instruments - Yeehing Electronics
1.8 to 5.5V, high-precision current sense amplifier in wcsp
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 0.741 |
100 — 249 | 0.57 |
250 — 999 | 0.42 |
1,000 + | 0.21 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Current & Power Monitors & Regulators |
RoHS | Y |
Product | Current Monitors |
Supply Voltage - Max | 5.5 V |
Supply Voltage - Min | 1.8 V |
Operating Supply Current | 30 uA |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 125 C |
Mounting Style | SMD/SMT |
Package / Case | UQFN-10 |
Packaging | Reel |
Bandwidth | 20 kHz |
Features | Small WCSP Package |
Operating Temperature Range | - 40 C to + 125 C |
Series | INA216 |
Brand | Texas Instruments |
Input Voltage Range | 1.8 V to 5.5 V |
Operating Supply Voltage | 1.8 V to 5.5 V |
Product Type | Current & Power Monitors & Regulators |
Factory Pack Quantity | 3000 |
Subcategory | PMIC - Power Management ICs |
Vos - Input Offset Voltage | 75 uV |
Unit Weight | 0.000353 oz |
For more information, please refer to datasheet
Documents
INA216A2RSWR Datasheet |
More Information
The INA216 is a high-side voltage output current shunt monitor that can sense drops across shunts at common-mode voltages from +1.8V to +5.5V. Four fixed gains are available: 25V/V, 50V/V, 100V/V, and 200V/V. The low offset of the Zerø-Drift architecture enables current sensing with maximum drops across the shunt as low as 10mV full-scale, or with wide dynamic ranges of over 1000:1.
