Texas Instruments
INA216A2YFFR
INA216A2YFFR
Regular price
$0.33 USD
Regular price
Sale price
$0.33 USD
Unit price
per
Couldn't load pickup availability

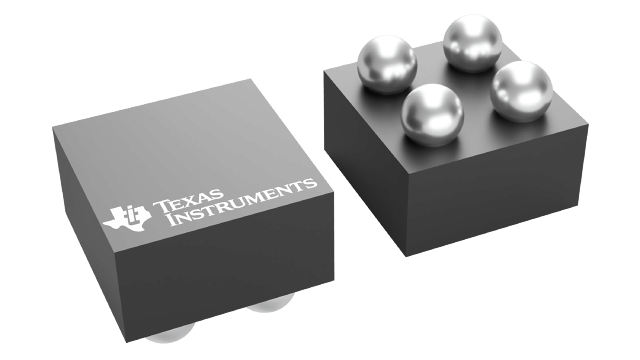

INA216A2YFFR Texas Instruments - Yeehing Electronics
1.8 to 5.5V, high-precision current sense amplifier in wcsp
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.618 |
| 100 — 249 | 0.475 |
| 250 — 999 | 0.35 |
| 1,000 + | 0.33 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Current & Power Monitors & Regulators |
| RoHS | Y |
| Product | Current Monitors |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 1.8 V |
| Operating Supply Current | 30 uA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | DSBGA-4 |
| Packaging | Reel |
| Bandwidth | 20 kHz |
| Features | Small WCSP Package |
| Operating Temperature Range | - 40 C to + 125 C |
| Series | INA216 |
| Brand | Texas Instruments |
| Input Voltage Range | 1.8 V to 5.5 V |
| Operating Supply Voltage | 1.8 V to 5.5 V |
| Product Type | Current & Power Monitors & Regulators |
| Factory Pack Quantity | 3000 |
| Subcategory | PMIC - Power Management ICs |
| Vos - Input Offset Voltage | 75 uV |
| Unit Weight | 0.000025 oz |
For more information, please refer to datasheet
Documents
| INA216A2YFFR Datasheet |
More Information
The INA216 is a high-side voltage output current shunt monitor that can sense drops across shunts at common-mode voltages from +1.8V to +5.5V. Four fixed gains are available: 25V/V, 50V/V, 100V/V, and 200V/V. The low offset of the Zerø-Drift architecture enables current sensing with maximum drops across the shunt as low as 10mV full-scale, or with wide dynamic ranges of over 1000:1.
