INA2181A1IDSQR Texas Instruments - Yeehing Electronics
26V, dual channel, bi-directional, 350kHz current sense amplifier
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 0.489 |
100 — 249 | 0.376 |
250 — 999 | 0.277 |
1,000 + | 0.19 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Minimum Operating Temperature | -40 |
Maximum Operating Temperature | 125 |
Factory Pack Quantity | 3,000 |

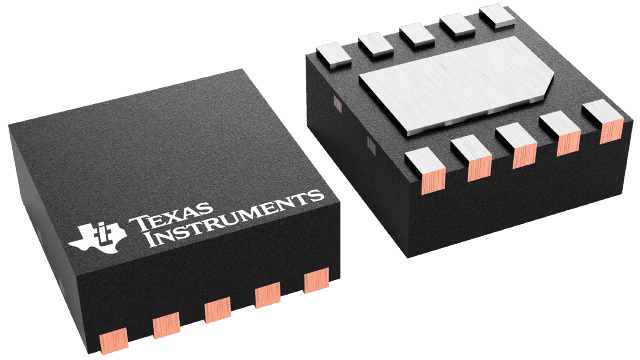

Package | Pins | WSON (DSQ) | 10 |
For more information, please refer to datasheet
Documents
INA2181A1IDSQR Datasheet |
More Information
The INA181, INA2181, and INA4181 (INAx181) current sense amplifiers are designed for cost-optimized applications. These devices are part of a family of bidirectional, current-sense amplifiers (also called current-shunt monitors) that sense voltage drops across current-sense resistors at common-mode voltages from –0.2 V to +26 V, independent of the supply voltage. The INAx181 family integrates a matched resistor gain network in four, fixed-gain device options: 20 V/V, 50 V/V, 100 V/V, or 200 V/V. This matched gain resistor network minimizes gain error and reduces the temperature drift.
