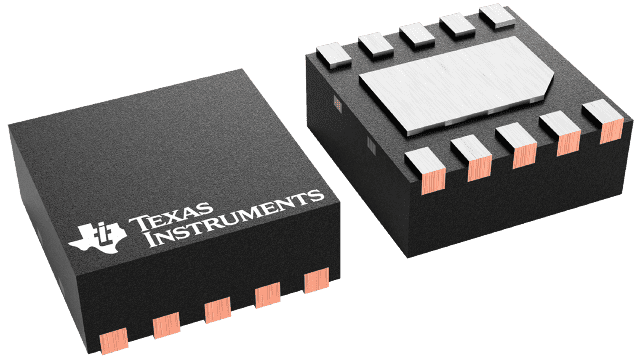

INA2181A1IDSQT Texas Instruments - Yeehing Electronics
26V, dual channel, bi-directional, 350kHz current sense amplifier
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.983 |
| 100 — 249 | 0.756 |
| 250 — 999 | 0.557 |
| 1,000 + | 0.28 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| INA2181A1IDSQT Datasheet |
More Information
The INA181, INA2181, and INA4181 (INAx181) current sense amplifiers are designed for cost-optimized applications. These devices are part of a family of bidirectional, current-sense amplifiers (also called current-shunt monitors) that sense voltage drops across current-sense resistors at common-mode voltages from –0.2 V to +26 V, independent of the supply voltage. The INAx181 family integrates a matched resistor gain network in four, fixed-gain device options: 20 V/V, 50 V/V, 100 V/V, or 200 V/V. This matched gain resistor network minimizes gain error and reduces the temperature drift.
