Texas Instruments
INA223AIDSKT
INA223AIDSKT
Regular price
$0.87 USD
Regular price
Sale price
$0.87 USD
Unit price
per
Couldn't load pickup availability

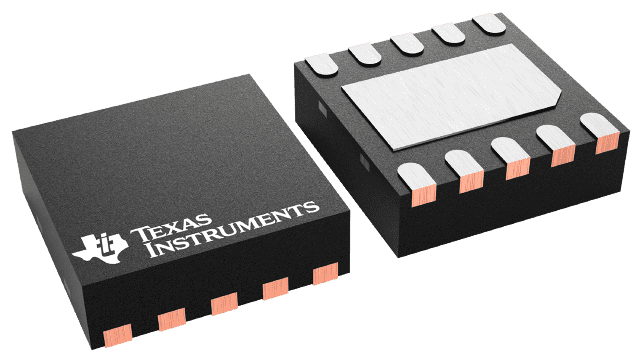

INA223AIDSKT Texas Instruments - Yeehing Electronics
26V, programmable-gain current sense amplifier & analog power monitor
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.497 |
| 100 — 249 | 2.188 |
| 250 — 999 | 1.534 |
| 1,000 + | 0.87 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Current Sense Amplifiers |
| RoHS | Y |
| Series | INA223 |
| GBP - Gain Bandwidth Product | 25 kHz |
| Vcm - Common Mode Voltage | 0 V to 26 V |
| CMRR - Common Mode Rejection Ratio | 100 dB |
| Vos - Input Offset Voltage | 100 uV |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 2.7 V |
| Operating Supply Current | 250 uA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 105 C |
| Mounting Style | SMD/SMT |
| Package / Case | WSON-10 |
| Packaging | Reel |
| Amplifier Type | Current Sense |
| Features | I2C, Programmable Gain |
| Output Voltage | 1.5 V |
| Product | Current Sense Amplifiers |
| Brand | Texas Instruments |
| Topology | Current Shunt Feedback |
| Development Kit | INA223EVM |
| Gain Error | 0.2 % |
| Gain V/V | 20 V/V, 128 V/V, 300 V/V |
| Product Type | Current Sense Amplifiers |
| Factory Pack Quantity | 250 |
| Subcategory | Amplifier ICs |
| Unit Weight | 0.003527 oz |
For more information, please refer to datasheet
Documents
| INA223AIDSKT Datasheet |
More Information
The INA223 is a voltage-output device that monitors the current, bus voltage, and power of a supply line by sensing a voltage drop across a shunt at common-mode voltages from 0 V to 26 V. The common-mode voltage range is independent of the supply voltage. The low offset of the Zerø-Drift architecture enables current sensing with maximum drops across the shunt as low as 10 mV, full-scale.
