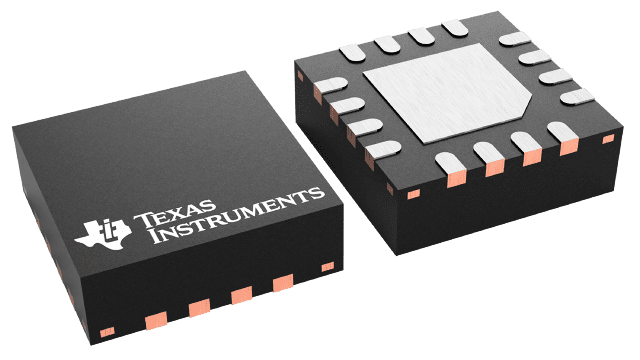

INA230AIRGTR Texas Instruments - Yeehing Electronics

36-V, 16-bit, I²C output current, voltage and power monitor with alert

Pricing (USD)

Quantity	Unit Price
1 — 99	2.128
100 — 249	1.758
250 — 999	1.263
1,000 +	0.55

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Current Sense Amplifiers
RoHS	Y
Series	INA230
GBP - Gain Bandwidth Product	7 kHz
Vcm - Common Mode Voltage	0 V to 28 V
CMRR - Common Mode Rejection Ratio	100 dB
Vos - Input Offset Voltage	50 uV
Supply Voltage - Max	5.5 V
Supply Voltage - Min	2.7 V
Operating Supply Current	420 uA
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Mounting Style	SMD/SMT
Package / Case	VQFN-16
Packaging	Reel
Features	Alert Function, Bi-directional, Low-side Capable
Product	Current Sense Amplifiers
Brand	Texas Instruments
Development Kit	INA230EVM
Gain Error	0.2 %
Gain V/V	1 V/V
Moisture Sensitive	Yes
Product Type	Current Sense Amplifiers
Factory Pack Quantity	3000
Subcategory	Amplifier ICs
Part # Aliases	HPA01112AIRGTR
Unit Weight	0.001764 oz

For more information, please refer to datasheet

Documents

INA230AIRGTR Datasheet

More Information

The INA230 is a current-shunt and power monitor with an I2C interface that features 16 programmable addresses. The INA230 monitors both shunt voltage drops and bus supply voltage. Programmable calibration value, conversion times, and averaging, combined with an internal multiplier, enable direct readouts of current in amperes and power in watts.
