INA231AIYFFR Texas Instruments - Yeehing Electronics

28V, 16-bit, i2c output current/voltage/power monitor w/alert in wcsp

Pricing (USD)

Quantity	Unit Price
1 — 99	2.016
100 — 249	1.766
250 — 999	1.239
1,000 +	0.80

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Current & Power Monitors & Regulators
RoHS	Y
Supply Voltage - Max	5.5 V
Supply Voltage - Min	2.7 V
Operating Supply Current	420 uA
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C

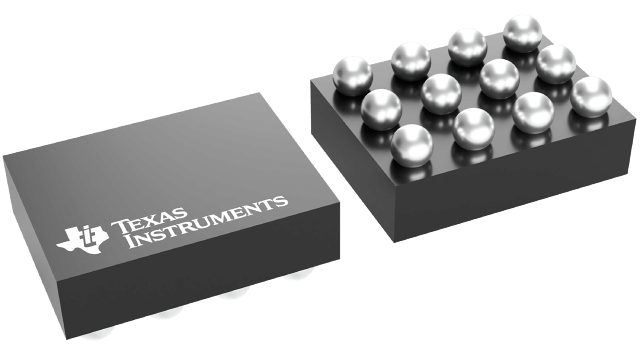

Package / Case	DSBGA-12
Packaging	Reel
Bandwidth	7 kHz
Features	Alert Function, Bi-directional, Low-side Capable
Operating Temperature Range	- 40 C to + 125 C
Series	INA231
Brand	Texas Instruments
Input Voltage Range	0 V to 28 V
Operating Supply Voltage	2.7 V to 5.5 V
Product Type	Current & Power Monitors & Regulators
Factory Pack Quantity	3000
Subcategory	PMIC - Power Management ICs
Vos - Input Offset Voltage	50 uV
Part # Aliases	HPA02149AIYFFR
Unit Weight	0.000092 oz

For more information, please refer to datasheet

Documents

INA231AIYFFR Datasheet

More Information

The INA231 is a current-shunt and power monitor with a 1.8-V compliant I2C interface that features 16 programmable addresses. The INA231 monitors both shunt voltage drops and bus supply voltage, providing increased protection by asserting the ALERT pin if the values are outside the programmed range. Programmable calibration value, conversion time, and averaging, combined with an internal multiplier, enable direct readouts of current in amperes and power in watts, thus reducing host processing.
