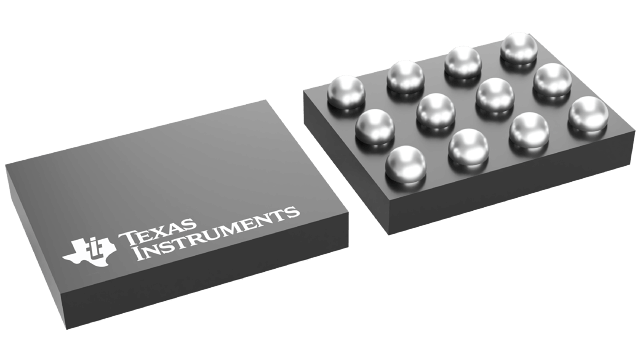

INA231BIYFDR Texas Instruments - Yeehing Electronics
28V, 16-bit, i2c output current/voltage/power monitor w/alert in wcsp
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 2.236 |
100 — 249 | 1.846 |
250 — 999 | 1.326 |
1,000 + | 0.70 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
INA231BIYFDR Datasheet |
More Information
The INA231 is a current-shunt and power monitor with a 1.8-V compliant I2C interface that features 16 programmable addresses. The INA231 monitors both shunt voltage drops and bus supply voltage, providing increased protection by asserting the ALERT pin if the values are outside the programmed range. Programmable calibration value, conversion time, and averaging, combined with an internal multiplier, enable direct readouts of current in amperes and power in watts, thus reducing host processing.
