Description

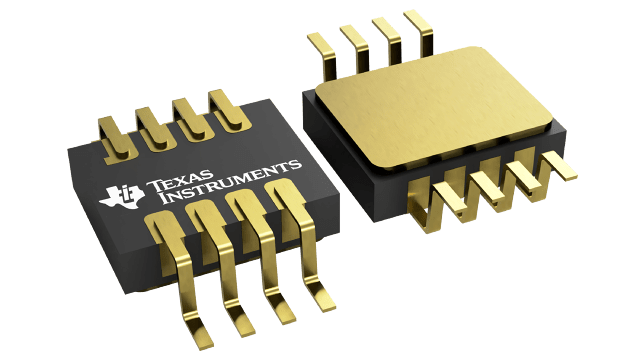

INA271SHKQ Texas Instruments - Yeehing Electronics
High temp, -16 to 80V, split-stage current sense amplifier w/ in-line filter capability
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 120.909 |
100 — 249 | 117.273 |
250 — 999 | 97.636 |
1,000 + | 63.64 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Current Sense Amplifiers |
RoHS | Y |
Series | INA271-HT |
CMRR - Common Mode Rejection Ratio | 100 dB |
Vos - Input Offset Voltage | 2.5 mV |
Supply Voltage - Max | 18 V |
Supply Voltage - Min | 2.7 V |
Operating Supply Current | 950 uA |
Minimum Operating Temperature | - 55 C |
Maximum Operating Temperature | + 210 C |
Mounting Style | SMD/SMT |
Package / Case | CFP-8 |
Packaging | Tube |
Features | Low-side Capable |
Output Voltage | 20 V |
Brand | Texas Instruments |
Operating Supply Voltage | 2.7 V to 18 V |
Product Type | Current Sense Amplifiers |
Factory Pack Quantity | 1 |
Subcategory | Amplifier ICs |
For more information, please refer to datasheet
Documents
INA271SHKQ Datasheet |
More Information
The INA271 is a current-shunt monitor with voltage output and can sense drops across current shunts at common-mode voltages from –16V to +80V, independent of the supply voltage. The INA271 pinouts readily enable filtering.
