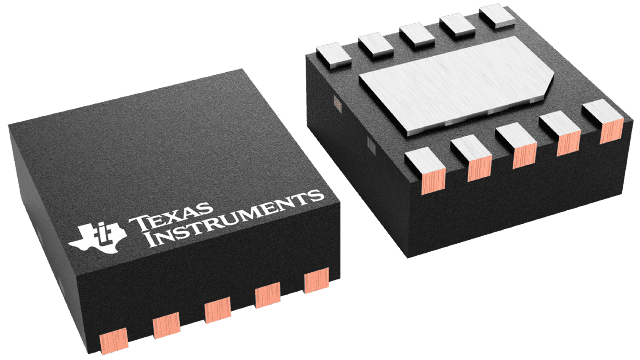

INA300AIDSQT Texas Instruments - Yeehing Electronics
36V current sense comparator
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.21 |
| 100 — 249 | 0.999 |
| 250 — 999 | 0.718 |
| 1,000 + | 0.05 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Current & Power Monitors & Regulators |
| RoHS | Y |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 2.7 V |
| Operating Supply Current | 135 uA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | WSON-10 |
| Packaging | Reel |
| Description/Function | Bi-directional zero-drift series current sense comparator |
| Features | Alert Function, Low-side Capable |
| Operating Temperature Range | - 40 C to + 125 C |
| Output Voltage | 36 V |
| Series | INA300 |
| Brand | Texas Instruments |
| Development Kit | INA300EVM |
| Ib - Input Bias Current | 500 nA |
| Moisture Sensitive | Yes |
| Pd - Power Dissipation | 5 W |
| Product Type | Current & Power Monitors & Regulators |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Vos - Input Offset Voltage | 750 uV |
| Unit Weight | 0.000374 oz |
For more information, please refer to datasheet
Documents
| INA300AIDSQT Datasheet |
More Information
Designed for overcurrent protection applications, the INA300 is a current-sensing comparator that detects overcurrent by measuring the voltage developed across a shunt resistor, and comparing that voltage to the threshold voltage input level. The device measures this differential voltage signal on common-mode voltages that can vary from 0 V up to 36 V, independent of the supply voltage. The INA300 device features an adjustable threshold range that is set using a single external limit-setting resistor. A selectable hysteresis feature enables adjustable operation of the comparator to accommodate the wide input signal range of 0 mV to 250 mV.
