Texas Instruments
INA3221AIRGVT
INA3221AIRGVT
Regular price
$1.32 USD
Regular price
Sale price
$1.32 USD
Unit price
per
Couldn't load pickup availability

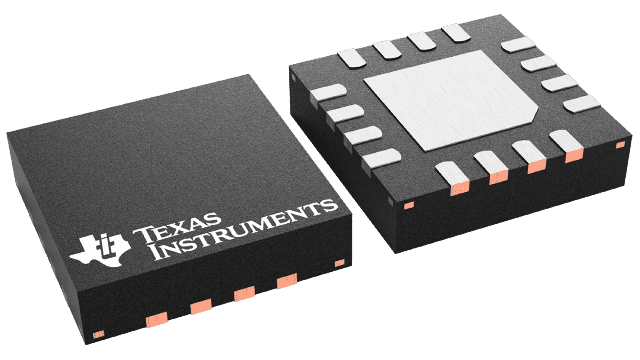

INA3221AIRGVT Texas Instruments - Yeehing Electronics
26V, triple channel, 13-bit, i2c output current/voltage monitor w/alerts
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.478 |
| 100 — 249 | 2.835 |
| 250 — 999 | 2.228 |
| 1,000 + | 1.32 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Current & Power Monitors & Regulators |
| RoHS | Y |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 2.7 V |
| Operating Supply Current | 350 uA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-16 |
| Packaging | Reel |
| Features | Alert Function, Bi-directional, Low-side Capable |
| Operating Temperature Range | - 40 C to + 125 C |
| Series | INA3221 |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Product Type | Current & Power Monitors & Regulators |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Vos - Input Offset Voltage | 80 uV |
| Unit Weight | 0.001764 oz |
For more information, please refer to datasheet
Documents
| INA3221AIRGVT Datasheet |
More Information
The INA3221 is a three-channel, high-side current and bus voltage monitor with an I2C- and SMBUS-compatible interface. The INA3221 monitors both shunt voltage drops and bus supply voltages, in addition to having programmable conversion times and averaging modes for these signals. The INA3221 offers both critical and warning alerts to detect multiple programmable out-of-range conditions for each channel.
