Description

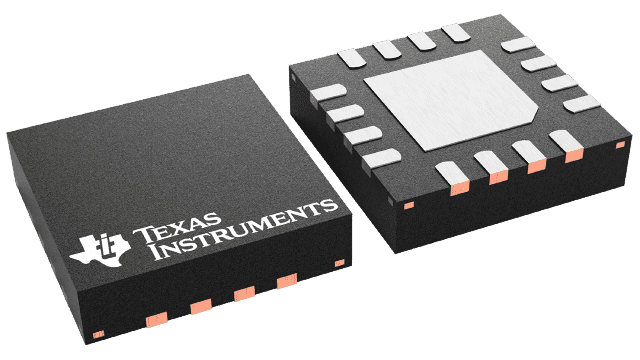

INA3221AQRGVRQ1 Texas Instruments - Yeehing Electronics
AEC-Q100, 26V, triple channel, 13-bit, i2c output current/voltage monitor w/alerts
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 3.755 |
100 — 249 | 3.29 |
250 — 999 | 2.307 |
1,000 + | 1.30 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Minimum Operating Temperature | -40 |
Maximum Operating Temperature | 125 |
Factory Pack Quantity | 2,500 |
Package | Pins | VQFN (RGV) | 16 |
For more information, please refer to datasheet
Documents
INA3221AQRGVRQ1 Datasheet |
More Information
The INA3221-Q1 is a three-channel, high-side current and bus voltage monitor with an I2C- and SMBUS-compatible interface. The INA3221-Q1 monitors both shunt voltage drops and bus supply voltages, in addition to having programmable conversion times and averaging modes for these signals. The INA3221-Q1 offers both critical and warning alerts to detect multiple programmable out-of-range conditions for each channel.
