Texas Instruments
INA333AIDRGT
INA333AIDRGT
Regular price
$1.65 USD
Regular price
Sale price
$1.65 USD
Unit price
per
Couldn't load pickup availability

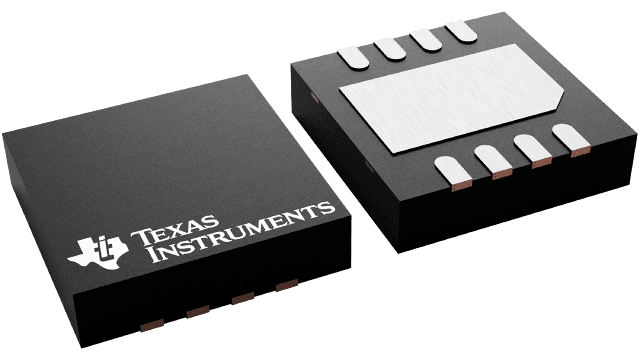

INA333AIDRGT Texas Instruments - Yeehing Electronics
Low-Power, Zero-Drift, Precision Instrumentation Amplifier
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 4.326 |
| 100 — 249 | 3.527 |
| 250 — 999 | 2.772 |
| 1,000 + | 1.65 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Instrumentation Amplifiers |
| RoHS | Y |
| Series | INA333 |
| Number of Channels | 1 Channel |
| GBP - Gain Bandwidth Product | - |
| SR - Slew Rate | 0.16 V/us |
| CMRR - Common Mode Rejection Ratio | 100 dB |
| Ib - Input Bias Current | 200 pA |
| Vos - Input Offset Voltage | 25 uV |
| Maximum Input Resistance | 100 GOhms |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 1.8 V |
| Operating Supply Current | 50 uA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | WSON-8 |
| Packaging | Reel |
| Height | 0.8 mm |
| Length | 3.1 mm |
| Output Voltage | 1.75 V |
| Product | Instrumentation Amplifiers |
| Width | 3.1 mm |
| Brand | Texas Instruments |
| 3 dB Bandwidth | 150 kHz |
| Dual Supply Voltage | +/- 2.75 V |
| Gain V/V | 1 V/V to 1000 V/V |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 1.8 V to 5.5 V |
| Output Current per Channel | 40 mA |
| Product Type | Instrumentation Amplifiers |
| PSRR - Power Supply Rejection Ratio | 120 dB |
| Factory Pack Quantity | 250 |
| Subcategory | Amplifier ICs |
| Vcm - Common Mode Voltage | +/- 0.1 V |
| Unit Weight | 0.000384 oz |
For more information, please refer to datasheet
Documents
| INA333AIDRGT Datasheet |
More Information
The INA333 device is a low-power, precision instrumentation amplifier offering excellent accuracy. The versatile 3-operational amplifier design, small size, and low power make it ideal for a wide range of portable applications.
