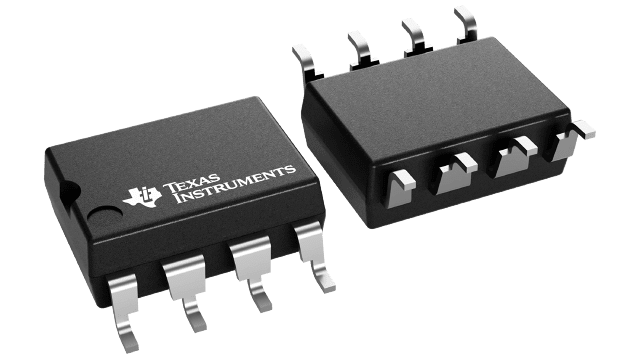

ISO1050DUBR Texas Instruments - Yeehing Electronics

Isolated 5-V CAN transceiver

Pricing (USD)

Quantity	Unit Price
1 — 99	3.232
100 — 249	2.832
250 — 999	1.986
1,000 +	1.12

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Digital Isolators
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	SOP-8
Series	ISO1050
Number of Channels	1 Channel
Polarity	Unidirectional
Isolation Voltage	2.5 kVrms
Isolation Type	Capacitive Coupling
Data Rate	1 Mb/s
Propagation Delay Time	74 ns
Supply Voltage - Max	5.5 V
Supply Voltage - Min	3 V
Operating Supply Current	52 mA
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 105 C
Packaging	Reel
Input Type	Differential
Output Current	+/- 70 mA
Output Type	Differential
Product	Digital Isolators
Brand	Texas Instruments
Shutdown	Shutdown
Development Kit	ISO1050EVM
Forward Channels	1 Channel
Maximum Fall Time	50 ns
Maximum Rise Time	50 ns
Moisture Sensitive	Yes
Operating Supply Voltage	3.3 V, 5 V
Pd - Power Dissipation	200 mW
Product Type	Digital Isolators
Protocol Supported	CAN
Reverse Channels	1 Channel
Factory Pack Quantity	350
Subcategory	Interface ICs
Unit Weight	0.030018 oz

For more information, please refer to datasheet

Documents

ISO1050DUBR Datasheet

More Information

The ISO1050 is a galvanically isolated CAN transceiver that meets the specifications of the ISO11898-2 standard. The device has the logic input and output buffers separated by a silicon oxide (SiO2) insulation barrier that provides galvanic isolation of up to 5000 VRMS for ISO1050DW and 2500 VRMS for ISO1050DUB. Used in conjunction with isolated power supplies, the device prevents noise currents on a data bus or other circuits from entering the local ground and interfering with or damaging sensitive circuitry.
